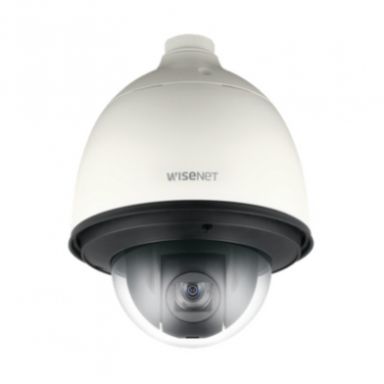

Hanwha HCP-6320HA security camera CCTV security camera Outdoor Dome 1920 x 1080 pixels Ceiling/wall
In Stock
|
Call For Price
(0808 189 1246)
Performance
Infrared (IR) cut-off filter
Yes
Connectivity technology
Wired
PTZ control
Yes
Placement supported
Outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Alarm input/output
Yes
Design
IK code
IK10
Form factor
Dome
Product colour
Ivory
Mounting type
Ceiling/wall
International Protection (IP) code
IP66
Housing material
Metal- Plastic
Camera
Pan preset speed
700 °/sec
Minimum illumination
0.01 lx
Tilt angle range
-15 - 195°
Tilt speed
200 °/sec
Pan range
0 - 360°
Pan speed
200 °/sec
Camera shutter type
Electronic
Camera shutter speed
2 - 1/12000 s
Camera pan control
Yes
Camera tilt control
Yes
Lens viewing angle- horizontal
62.8°
Lens viewing angle- vertical
36.8°
Progressive scan
Yes
Image sensor
Number of effective pixels (H x V)
1944 x 1104 pixels
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
4.4
Auto focus
Yes
Closest focusing distance
1.4 m
Minimum aperture number
1.6
Zoom capability
Yes
Digital zoom
16x
Focal length range
4.44-142.6 mm
Video
Noise reduction
Yes
Privacy masking
Yes
Flip & mirror
Yes
Image stabilizer
Yes
Back Light Compensation (BLC)
Yes
Maximum resolution
1920 x 1080 pixels
Frame rate
30 fps
Total megapixels
2.38 MP
Network
Bluetooth
No
Ethernet LAN
No
Wi-Fi
No
Storage
Built-in HDD
No
Ports & interfaces
RS-485 ports
1
Connectivity technology
Wired
Security
Video motion detection
Yes
Power
Power source type
AC
Power consumption (max)
65 W
AC input voltage
24 V
Operational conditions
Operating temperature (T-T)
-50 - 55 °C
Storage temperature (T-T)
-50 - 60 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 90%
Weight & dimensions
Height
293.6 mm
Diameter
22 cm
Weight
3.3 kg
Hanwha HCP-6320HA security camera CCTV security camera Outdoor Dome 1920 x 1080 pixels Ceiling/wall
