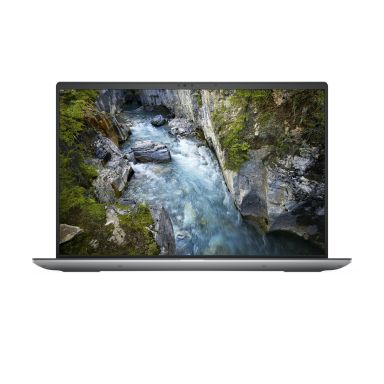

Dell Precision 5690 - AI Ready - 16" - Intel Core Ultra 7 - 165H - vPro Enterprise - 32 GB RAM - 1 TB SSD
In Stock
|
Call For Price (0808 189 1246)
Design
Product type
Mobile workstation
Market positioning
Business
Form factor
Clamshell
Product colour
Grey
Intel® vPro™ Platform Eligibility
Yes
Display
HD type
Full HD+
Pixel density
142 ppi
Panel type
IPS
LED backlight
Yes
Display brightness
500 cd/m²
Contrast ratio (typical)
1300:1
Touchscreen
No
Display resolution
1920 x 1200 pixels
Display diagonal
40.6 cm (16")
Anti-glare screen
Yes
Maximum refresh rate
60 Hz
RGB colour space
DCI-P3
Colour gamut
100%
Native aspect ratio
16:10
Processor
Processor generation
Intel® Core™ Ultra (Series 1)
Processor cache type
Smart Cache
Processor cache
24 MB
Processor model
165H
Processor boost frequency
5 GHz
Processor cores
16
Processor threads
22
Processor manufacturer
Intel
Processor family
Intel Core Ultra 7
Processor base power
28 W
Maximum turbo power
115 W
Efficient-core base frequency
0.9 GHz
Performance-core base frequency
1.4 GHz
Efficient-core Max Turbo Frequency
3.8 GHz
Performance-core Max Turbo Frequency
5 GHz
Performance cores
6
Efficient cores
8
Low Power Efficient-core Base Frequency
700 MHz
Low Power Efficient-core Max Turbo Frequency
2.5 GHz
Low Power Efficient-cores
2
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Maximum frequency NPU
1.4 GHz
Sparsity support
Yes
Windows Studio effects support
Yes
AI datatype support on NPU
FP16, FP32, Int8
AI software frameworks supported by NPU
DirectML, ONNX RT, OpenVINO, Windows ML
Memory
Memory form factor
On-board
Internal memory
32 GB
Internal memory type
LPDDR5x-SDRAM
Maximum internal memory
32 GB
Memory channels
Dual-channel
Memory data transfer rate
7467 MT/s
Storage
SSD form factor
M.2
Storage media
SSD
Optical drive type
No
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
Total storage capacity
1 TB
Total SSDs capacity
1 TB
SSD performance class
40
NVMe
Yes
M.2 SSD size
2280 (22 x 80 mm)
Graphics
Discrete graphics card
Yes
Discrete graphics card memory
6 GB
On-board graphics card family
Intel Arc Graphics
On-board graphics card
Yes
On-board graphics card model
Intel Arc Graphics
Discrete graphics card model
NVIDIA RTX 1000 Ada
Discrete graphics memory type
GDDR6
On-board GPU manufacturer
Intel
Audio
Number of microphones
2
Number of built-in speakers
4
Speakers manufacturer
Waves
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera resolution (numeric)
2.07 MP
Front camera resolution
1920 x 1080 pixels
Video capturing speed
30 fps
Front camera HD type
Full HD
Infrared (IR) camera
Yes
Optical drive
Optical drive type
No
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
WLAN controller model
Intel Wi-Fi 7 BE200
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Antenna type
2x2
WLAN controller manufacturer
Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Type-C DisplayPort Alternate Mode
Yes
USB 2.0 ports quantity
0
HDMI ports quantity
1
HDMI version
2.1
Combo headphone/mic port
Yes
USB Power Delivery (USB PD)
Yes
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Performance
Gyroscope
Yes
Proximity sensor
Yes
Ambient light sensor
Yes
Accelerometer
Yes
Hall sensor
Yes
Keyboard
Pointing device
Touchpad
Numeric keypad
No
Keyboard backlit
Yes
Keyboard language
UK English
Copilot key
Yes
Software
Operating system language
German, Dutch, English, French, Italian
Operating system architecture
64-bit
Trial software
No Microsoft Office Licence Included - 30 day Trial Offer Only
Operating system installed
Windows 11 Pro
Technical details
Market positioning
Business
Form factor
Clamshell
Product colour
Grey
Discrete graphics card memory
6 GB
Processor special features
Intel® vPro™ Platform Eligibility
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
6
Battery capacity
99.5 Wh
Battery recharge time
3 h
Battery voltage
11.55 V
Fast charging
Yes
Battery charge indicator
Yes
Battery weight
363 g
Power
AC adapter power
165 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
USB Power Delivery (USB PD)
Yes
Security
Password protection
Yes
Cable lock slot type
Wedge
Trusted Platform Module (TPM)
Yes
Fingerprint reader
Yes
Cable lock slot
Yes
Trusted Platform Module (TPM) version
2.0
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
-15.2 - 3048 m
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Operating vibration
0.66 G
Non-operating vibration
1.3 G
Sustainability
Total carbon footprint (kg of CO2e)
246
Weight & dimensions
Width
353.7 mm
Depth
240.3 mm
Height (front)
2.05 cm
Height (rear)
2.22 cm
Weight
2.03 kg
Packaging data
Cables included
AC
Other features
Ambient light sensor
Yes
WLAN controller model
Intel Wi-Fi 7 BE200
On-board graphics card
Yes
Anti-glare screen
Yes
Sensors
Proximity sensor
Yes
Ambient light sensor
Yes
Accelerometer
Yes
Carbon footprint
Total carbon footprint (kg of CO2e)
246
Total carbon emissions, w/o use phase (kg of CO2e)
210.084
PAIA version
GaBi version 1, 2024
Carbon emissions, energy usage (kg of CO2e)
35.916
Carbon emissions, manufacturing (kg of CO2e)
200.49
Carbon emissions, logistics (kg of CO2e)
6.888
Carbon emissions, end-of-life (kg of CO2e)
2.46
Packaging content
Cables included
AC
Dell Precision 5690 - AI Ready - 16" - Intel Core Ultra 7 - 165H - vPro Enterprise - 32 GB RAM - 1 TB SSD
Built for professionals who demand high performance, reliability, and enterprise-grade security, Dell Precision 5690 UK is a premium workstation offering exceptional, intelligent performance in a thin and light design as well as an FHD HDR IR camera, Haptics trackpad, and premium audio for a high-quality experience.
Key Features of Dell Precision 5690 Core Ultra 7 165H UK:
-
Display size: 40.6 cm (16.0")
-
Display surface: Anti-reflective
-
Physical resolution: 1920 x 1200 WUXGA
-
Aspect ratio: 16:10
-
Brightness: 500 cd/m²
-
Processor model: Intel Core Ultra 7 165H, 1.4 GHz
-
RAM: 32 GB
-
RAM type: LPDDR5X
-
Graphics: 6 GB NVIDIA RTX A1000, Intel Iris Xe Graphics
-
SSD: 1 TB
-
SSD form factor: 1 x M.2 PCIe
-
Connectors: 1 x HDMI, 1 x USB Type-C, 2 x Thunderbolt 4
-
Built-in webcam: 2 MP FHD, Infrared camera
-
Battery: 6-cell Li-Poly 88Wh
Here is a detailed description of the Precision 5690 workstation UK specs.
Dell Mobile Workstation AI Ready UK:
HKHPY Dell Precision 5690 UK is provided with Intel Core Ultra 7 165H, 1.4 GHz CPU, supporting up to 5 GHz / 24 MB Cache. It offers a unique combined AI-engine of CPU, integrated Intel® Arc graphics GPU, and dedicated low-power AI engine NPU with Intel® AI Boost, and Intel vPro®-options. Users can accelerate AI-driven tasks while improving power efficiency, making this laptop suitable for machine learning and AI applications.
Enhanced Visuals:
Dell Precision 5690 vPro Enterprise UK comes with an expansive 16:10 display with up to UHD+ OLED, DCI-P3 100%, up to 500nits brightness, and PremierColour. You can also enjoy a comfortable viewing experience with ComfortView Plus options that reduce blue light emissions.
High-Speed Memory & Storage:
Dell laptop Core Ultra 7 165H UK comes with 32GB RAM and 1TB SSD storage. 32 GB LPDDR5X with 7467 MHz clock speed allows you to enjoy seamless multitasking and responsive performance. In addition, 1TB SSD storage provides ample space for large projects while delivering fast boot times and rapid data access.
Ports and Slots:
Dell Precision 5690 UK is provided with wide-ranging connectivity interfaces, allowing users to connect to external devices and ensure faster data transfer. For instance, the following ports and slots are available:
-
Full-SD, Optional SD 7.0 Express
-
USB Type-Câ„¢/ Display port alt
-
Wedge-shaped lock slot
-
HDMI 2.1
-
Universal audio
-
(2) Thunderbolt 4 with PowerDelivery USB Type-Câ„¢/ Display port alt
-
Optional Smart Card reader
| Length | 24.03 cm |
| Width | 35.37 cm |
| Height | 2.05 cm |
| Weight | 3.52 kgs |
