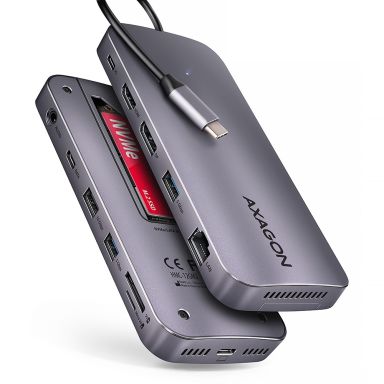

Axagon HMC-12GM2 laptop dock/port replicator Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Grey

Combo headphone/mic port

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

Headphone connectivity

3.5 mm

Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

DisplayPorts quantity

1

Headphone outputs

1

DC-in jack

No

Connectivity technology

Wired

USB Power Delivery (USB PD)

Yes

USB Power Delivery revision

3.0

USB Power Delivery up to

100 W

HDCP version

1.4/2.3

HDCP

Yes

USB Type-C DisplayPort Alternate Mode

Yes

Full duplex

Yes

Auto MDI/MDI-X

Yes

Networking standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Wake-on-LAN ready

Yes

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Ethernet LAN (RJ-45) ports

1

Jumbo frames support

Yes

Maximum digital resolution

4096 x 2160 pixels

Full duplex

Yes

Auto MDI/MDI-X

Yes

Number of displays supported

2

Country of origin

China

Product colour

Grey

Card reader integrated

Yes

Built-in speaker(s)

No

Brand compatibility

Universal

Plug and Play

Yes

LED indicators

Yes

Hot-Plug support

Yes

Data transfer rate

10 Gbit/s

Compatible memory cards

MMC, MMC Mobile, MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, MiniSDHC, RS-MMC, SD, SDHC, SDXC

Charging function

Yes

Certification

CE

NVMe

Yes

Jumbo frames support

Yes

HD type

4K Ultra HD

Housing material

Aluminium

Number of storage drives supported

1

Supported storage drive types

SSD

Storage drive sizes supported

M.2

Maximum refresh rate

240 Hz

Supported SSD sizes

M.2

Hub interfaces

3.5mm, DisplayPort, HDMI, RJ-45, USB 3.1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A

SSD interface

M.2

SSD enclosure

Yes

Built-in speaker(s)

No

Built-in microphone

No

Product colour

Grey

Brand compatibility

Universal

Plug and Play

Yes

Hot-Plug support

Yes

Data transfer rate

10 Gbit/s

Charging function

Yes

Compliance certificates

RoHS

Built-in fan

Yes

Number of fans

1 fan(s)

Card reader integrated

Yes

Compatible memory cards

MMC, MMC Mobile, MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, MiniSDHC, RS-MMC, SD, SDHC, SDXC

Supported SSD sizes

M.2

Built-in speaker(s)

No

Power source type

USB

Power connector

USB Type-C

USB cable length

0.5 m

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Server operating systems supported

Yes

Linux operating systems supported

Yes

Other operating systems supported

Yes

Mobile operating systems supported

Yes

LED indicators

Yes

Weight

178 g

Width

65 mm

Depth

149 mm

Height

17 mm

Package weight

342 g

Package width

213 mm

Package depth

130 mm

Package height

26 mm

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Country of origin

China

Product colour

Grey

LED indicators

Yes

Certification

CE

Quantity per pack

1 pc(s)

Package weight

342 g

Package width

213 mm

Package depth

130 mm

Package height

26 mm

Manual

Yes

Cables included

USB Type-C to USB Type-C

Quantity per pack

1 pc(s)

Certification

CE
