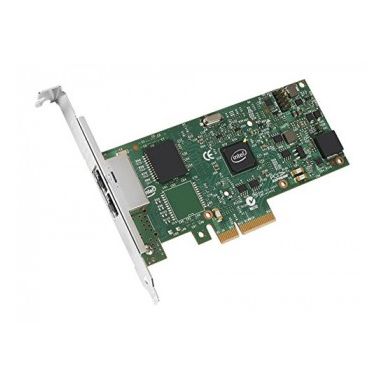

Intel I350T2V2 networking card Ethernet 1000 Mbit/s Internal
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Internal
Yes
PCI version
2.1
Ethernet LAN (RJ-45) ports
2
Interface
Ethernet
Host interface
PCI Express
Connectivity technology
Wired
Bandwidth
Full duplex
Yes
Maximum data transfer rate
1000 Mbit/s
Network
Chipset
Intel® I350
Ethernet LAN
Yes
Cabling technology
10/100/1000BaseT(X)
Networking standards
IEEE 802.1as-IEEE 802.1Q-IEEE 802.3-IEEE 802.3ab-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
Supported network protocols
TCP- UDP- IP
Maximum operating distance
100 m
LAN controller
Intel® I350
Full duplex
Yes
Ethernet LAN data rates
1000 Mbit/s
Maximum data transfer rate
1000 Mbit/s
Technical details
Interface type
PCIe v2.1 (5.0 GT/s)
Storage-over-ethernet
Yes
Speed & slot width
5.0 GT/s- x4 Lane
PCI-SIG* SR-IOV Capable
Yes
PCI Card form factor
Full-height (low-profile)
On-chip QoS and Traffic Management
Yes
Low halogen options available
No
iWARP/RDMA
No
Intelligent Offloads
Yes
Intel Virtualization Technology for Connectivity (VT-c)
Yes
Intel Virtual Machine Device Queues (VMDq)
Yes
Intel Flexible Port Partitioning
Yes
Intel Ethernet Power Management
Yes
Storage Over Ethernet
iSCSI- NFS
Harmonized System (HS) code
8517620090
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Thermal Design Power (TDP)
4.4 W
Product type
Network Interface Card
Processor family
Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Status
Launched
Product brief URL
http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Launch date
Q3'14
Last change
63903513
Protocols
Supported network protocols
TCP- UDP- IP
Design
Product family
Intel Gigabit server adapter
Product series
Intel® I350
Product codename
Powerville
Chipset
Intel® I350
Internal
Yes
PCI Card form factor
Full-height (low-profile)
Component for
Server
Performance
Ethernet adapter ARK ID
84804
Storage-over-ethernet
Yes
Speed & slot width
5.0 GT/s- x4 Lane
PCI-SIG* SR-IOV Capable
Yes
On-chip QoS and Traffic Management
Yes
iWARP/RDMA
No
Intelligent Offloads
Yes
Intel Virtual Machine Device Queues (VMDq)
Yes
Intel Flexible Port Partitioning
Yes
Intel Ethernet Power Management
Yes
Power
Power consumption (typical)
5 W
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
35 - 90%
Packaging content
Manual
Yes
System requirements
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Weight & dimensions
Width
68.9 mm
Depth
135.4 mm
Height
120 mm
Packaging data
Manual
Yes
Other features
Thermal Design Power (TDP)
4.4 W
Product type
Network Interface Card
Processor family
Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Ethernet adapter ARK ID
84804
Interface type
PCIe v2.1 (5.0 GT/s)
Chipset
Intel® I350
Cable type
Cat 5 up to 100m
Storage-over-ethernet
Yes
Speed & slot width
5.0 GT/s- x4 Lane
PCI-SIG* SR-IOV Capable
Yes
On-chip QoS and Traffic Management
Yes
Manual
Yes
Low halogen options available
No
iWARP/RDMA
No
Intelligent Offloads
Yes
Intel Virtualization Technology for Connectivity (VT-c)
Yes
Intel Virtual Machine Device Queues (VMDq)
Yes
Intel Flexible Port Partitioning
Yes
Intel Ethernet Power Management
Yes
Compatible operating systems
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Storage Over Ethernet
iSCSI- NFS
Status
Launched
Product brief URL
http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Network interface card type
Server
Network interface card cable medium
Copper
Market segment
Server
Launch date
Q3'14
Last change
63903513
Product family
Intel Gigabit server adapter
Product series
Intel® I350
Product codename
Powerville
Harmonized System (HS) code
8517620090
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Controller type
Intel I350
Cabling type
Cat 5 up to 100m
Bracket height
Low-Profile (LP) / Full-Height (FH)
Intel I350T2V2 networking card Ethernet 1000 Mbit/s Internal
