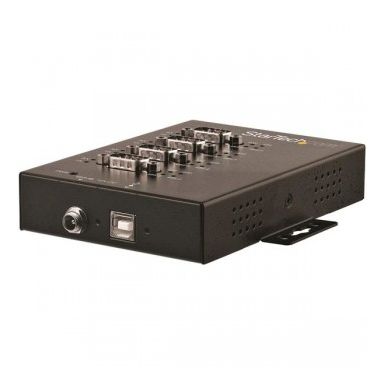

StarTech.com 4 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Host interface
USB 2.0 Type-B
RS-232 ports
4
Hub interfaces
Serial
Ports quantity
4
Features
Surge protection
Yes
Plug and Play
Yes
LED indicators
Power
Product colour
Black
Certification
CE- FCC- TAA- RoHS
Housing material
Steel
Host interface
USB 2.0 Type-B
Power
Power plug type
Type N
Output voltage
12 V
Output current
1 A
Technical details
Plug and Play
Yes
Product colour
Black
Performance
Certification
CE- FCC- TAA- RoHS
Surge protection
Yes
Plug and Play
Yes
Data bits
7-8
Stop bits
1-2
Baud rate
921.6 Kbit/s
Parity bit
Even- Mark- N- Odd- Space
System requirements
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite- Mac OS X 10.11 El Capitan- Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina- Mac OS X 10.9 Mavericks
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2008 R2-Windows Server 2012-Windows Server 2012 R2-Windows Server 2016-Windows Server 2019
Weight & dimensions
Weight
382 g
Width
116 mm
Depth
128 mm
Height
25 mm
Package width
165 mm
Package depth
240 mm
Package height
55 mm
Package weight
598 g
Packaging data
Package width
165 mm
Package depth
240 mm
Package height
55 mm
Package weight
598 g
Packaging content
Manual
Yes
Cables included
USB
DIN rail kit included
Yes
Design
LED indicators
Power
Product colour
Black
Certification
CE- FCC- TAA- RoHS
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-20 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Certificates
Certification
CE- FCC- TAA- RoHS
Indication
LED indicators
Power
Logistics data
Master (outer) case width
41 cm
Master (outer) case length
42 cm
Master (outer) case height
28 cm
Quantity per master (outer) case
15 pc(s)
Other features
Chipset
FTDI - FT4232H
StarTech.com 4 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection
