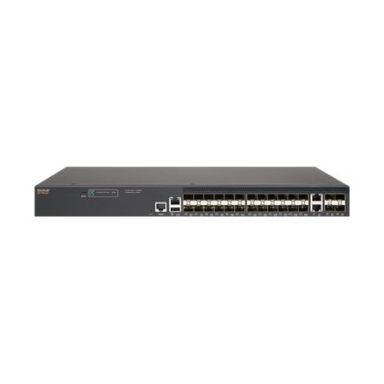

Ruckus ICX 7150-24F - Switch - L3 - managed - 24 x Gigabit SFP + 2 x 10/100/1000 (uplink) + 4 x 10 Gigabit SFP+ (uplink / stacking) - front and side to back - rack-mountable - Compliant
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Ruckus ICX 7150-24F - switch - 24 ports - managed - rack-mountable
Device Type
Switch - 24 ports - L3 - managed - stackable
Enclosure Type
Front and side to back rack-mountable 1U
Subtype
Gigabit Ethernet
MAC Address Table Size
16384 entries
Jumbo Frame Support
9216 bytes
Remote Management Protocol
Telnet SNMP 3 HTTP HTTPS TFTP CLI SCP
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
17.3 in x 14.6 in x 1.7 in
Weight
7.94 lbs
General
Device Type
Switch - 24 ports - L3 - managed - stackable
Enclosure Type
Front and side to back rack-mountable 1U
Subtype
Gigabit Ethernet
MAC Address Table Size
16384 entries
Jumbo Frame Support
9216 bytes
Max Units In A Stack
12
Remote Management Protocol
Telnet SNMP 3 HTTP HTTPS TFTP CLI SCP
Encryption Algorithm
AES
Authentication Method
RADIUS TACACS TACACS+ Secure Shell v.2 (SSH2)
RAM
1 GB
Flash Memory
2 GB
Power
Power Device
Internal power supply
Installed Qty
1 (installed) / 1 (max)
Power Provided
100 Watt
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
46 Watt
Miscellaneous
MTBF
541966 hours
Compliant
Yes
Dimensions & Weight
Width
17.3 in
Depth
14.6 in
Height
1.7 in
Weight
7.94 lbs
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °F
Max Storage Temperature
158 °F
Humidity Range Storage
0 - 95% (non-condensing)
Ruckus ICX 7150-24F - Switch - L3 - managed - 24 x Gigabit SFP + 2 x 10/100/1000 (uplink) + 4 x 10 Gigabit SFP+ (uplink / stacking) - front and side to back - rack-mountable - Compliant
| Length | 37.08 cm |
| Width | 43.94 cm |
| Height | 4.32 cm |
| Weight | 3.600000 kgs |
