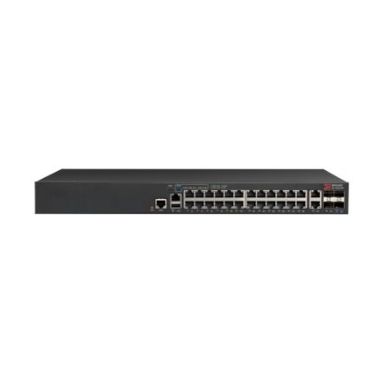

Ruckus ICX 7150-24P - Switch - L3 - managed - 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - front and side to back - rack-mountable - PoE+ (370 W) - Compliant
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| SPECIFICATIONS | |
|---|---|
| Product Description | Ruckus ICX 7150-24P - switch - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| MAC Address Table Size | 16384 entries |
| Jumbo Frame Support | 9216 bytes |
| Remote Management Protocol | Telnet SNMP 3 HTTP HTTPS TFTP CLI SCP |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 11 in x 1.7 in |
| General | |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| MAC Address Table Size | 16384 entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 8 |
| Remote Management Protocol | Telnet SNMP 3 HTTP HTTPS TFTP CLI SCP |
| Encryption Algorithm | AES |
| Authentication Method | RADIUS TACACS TACACS+ Secure Shell v.2 (SSH2) |
| RAM | 1 GB |
| Flash Memory | 2 GB |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 (installed) / 1 (max) |
| Power Provided | 525 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant | Yes |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 11 in |
| Height | 1.7 in |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 - 95% (non-condensing) |
Ruckus ICX 7150-24P - Switch - L3 - managed - 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - front and side to back - rack-mountable - PoE+ (370 W) - Compliant
| Length | 11 cm |
| Width | 17.3 cm |
| Height | 1.7 cm |
| Weight | 1.000000 kgs |
