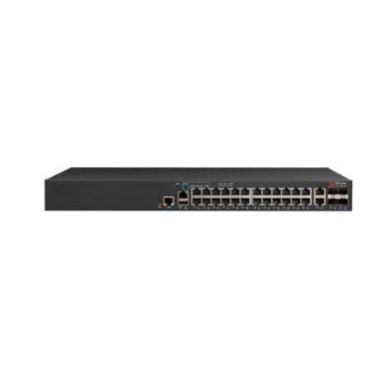

Ruckus Wireless ICX7150 Managed L3 Gigabit Ethernet Black
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 26 |
| Network | |
| IGMP snooping | Yes |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4095 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| Number of VLANs | 4095 |
| Data transmission | |
| Number of VLANs | 4095 |
| Jumbo frames | 9216 |
| Throughput | 98 Mpps |
| Packet buffer memory | 2 MB |
| MAC address table | 16384 entries |
| Switching capacity | 132 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 2 MB |
| Stackable | Yes |
| Physical stacking (units) | 12 |
| Memory type | DRAM |
| Mean time between failures (MTBF) | 871931 h |
| Internal memory | 1024 MB |
| Flash memory | 2048 MB |
| Technical details | |
| Physical stacking (units) | 12 |
| Product colour | Black |
| Stackable | Yes |
| Mean time between failures (MTBF) | 871931 h |
| Rack mounting | Yes |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Packet buffer memory | 2 MB |
| Memory type | DRAM |
| Internal memory | 1024 MB |
| Flash memory | 2048 MB |
| Design | |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 36 W |
| Power supply included | Yes |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 23.87 W |
| Input current | 0.125 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 12000 m |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 280 mm |
| Height | 43.7 mm |
| Weight | 3.8 kg |
