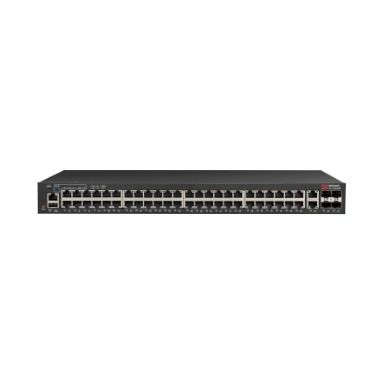

Ruckus ICX 7150-48 - Switch - L3 - managed - 48 x 10/100/1000 + 2 x 10/100/1000 (uplink) + 4 x Gigabit SFP - rack-mountable
Out of Stock
|
Call For Price (0808 189 1246)
Ruckus ICX 7150-48 - Switch - L3 - managed - 48 x 10/100/1000 + 2 x 10/100/1000 (uplink) + 4 x Gigabit SFP - rack-mountable
Write Your Own Review
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Ports & interfaces
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
4
Gigabit Ethernet (copper) ports quantity
50
Console port
RJ-45/USB Type-C
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4095
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Virtual LAN features
Stacked VLANPrivate VLANTagged VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4095
Virtual LAN features
Stacked VLANPrivate VLANTagged VLAN
Data transmission
Number of VLANs
4095
Jumbo frames
9216
Throughput
48 Mpps
Packet buffer memory
4 MB
MAC address table
16384 entries
Switching capacity
180 Gbit/s
Number of queues
8
Jumbo frames support
Yes
Performance
Packet buffer memory
4 MB
Stackable
Yes
Physical stacking (units)
12
Memory type
DRAM
Mean time between failures (MTBF)
714420 h
Internal memory
1024 MB
Flash memory
2048 MB
Technical details
Physical stacking (units)
12
Form factor
1U
Product colour
Black
Stackable
Yes
Mean time between failures (MTBF)
714420 h
Rack mounting
Yes
Security
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
Port-based authentication
Security algorithms
802.1x RADIUSAESEAPSSH
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server
Multicast features
Multicast support
Yes
Protocols
Management protocols
HTTP/HTTPS SNMPv1/v2c/v3 Telnet
Memory
Packet buffer memory
4 MB
Memory type
DRAM
Internal memory
1024 MB
Flash memory
2048 MB
Design
Form factor
1U
Product colour
Black
Stackable
Yes
LED indicators
Yes
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power supply included
Yes
AC input voltage
90 - 264 V
AC input frequency
47/63 Hz
Power consumption (typical)
38.49 W
Output power
65 W
Input current
5.4 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-25 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 118110.2" (0 - 3000 m)
Non-operating altitude
0 - 472440.9" (0 - 12000 m)
Weight & dimensions
Width
17.3" (440 mm)
Depth
14.6" (370 mm)
Height
1.72" (43.7 mm)
Weight
10.6 lbs (4.82 kg)
Packaging data
Package weight
14.7 lbs (6.65 kg)
| Length | 37.08 cm |
| Width | 43.94 cm |
| Height | 4.37 cm |
| Weight | 6.67 kgs |
