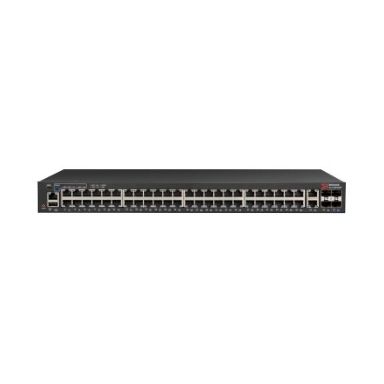

Ruckus ICX 7150-48PF - Switch - L3 - managed - 48 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - front and side to back - rack-mountable - PoE+ (740 W)

Ruckus ICX 7150-48PF - Switch - L3 - managed - 48 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - front and side to back - rack-mountable - PoE+ (740 W)

In Stock In Stock
Brand: Ruckus
SKU: ICX7150-48PF-4X10GR
Condition: NEW
Delivery: Next Day*
Product Type: Networking
Call For Price (0808 189 1246)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Ports & interfaces
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
2
Installed SFP+ modules quantity
2
Gigabit Ethernet (copper) ports quantity
26
Networking
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Full duplex
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4095
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
Stacked VLANPrivate VLANTagged VLAN
Virtual LAN features
Number of VLANs
4095
Virtual LAN features
Stacked VLANPrivate VLANTagged VLAN
Data transmission
Number of VLANs
4095
Jumbo frames
9216
Throughput
98 Mpps
Packet buffer memory
2 MB
MAC address table
16384 entries
Switching capacity
132 Gbit/s
Number of queues
8
Jumbo frames support
Yes
Performance
Packet buffer memory
2 MB
Stackable
Yes
Physical stacking (units)
12
Memory type
DRAM
Mean time between failures (MTBF)
871931 h
Internal memory
1024 MB
Flash memory
2048 MB
Technical details
Physical stacking (units)
12
Product colour
Black
Stackable
Yes
Mean time between failures (MTBF)
871931 h
Rack mounting
Yes
Security
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
Port-based authentication
Security algorithms
802.1x RADIUSAESEAPSSH-2
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server
Multicast features
Multicast support
Yes
Protocols
Memory
Packet buffer memory
2 MB
Memory type
DRAM
Internal memory
1024 MB
Flash memory
2048 MB
Design
Product colour
Black
Stackable
Yes
LED indicators
Yes
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power consumption (max)
36 W
Power supply included
Yes
AC input voltage
90 - 264 V
AC input frequency
47/63 Hz
Power consumption (typical)
23.87 W
Input current
0.125
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-25 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 118110.2" (0 - 3000 m)
Non-operating altitude
0 - 472440.9" (0 - 12000 m)
Weight & dimensions
Width
17.3" (440 mm)
Depth
11" (280 mm)
Height
1.72" (43.7 mm)
Weight
8.38 lbs (3.8 kg)
Packaging data
Package weight
11.5 lbs (5.2 kg)
Ruckus ICX 7150-48PF - Switch - L3 - managed - 48 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - front and side to back - rack-mountable - PoE+ (740 W)
Length 28.00 cm
Width 44.00 cm
Height 4.37 cm
Weight 3.800000 kgs
