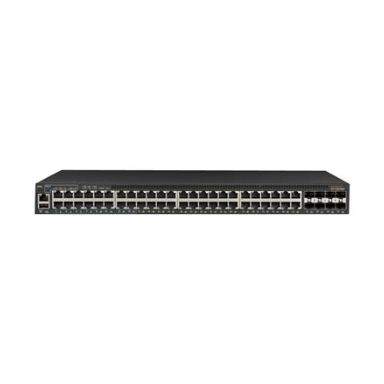

Ruckus ICX 7150-48ZP - Z-Series - switch - L3 - managed - 16 x 100/1000/2.5G (PoH) + 32 x 10/100/1000 (PoE+) + 8 x 10 Gigabit SFP+ (uplink) - front to back airflow - rack-mountable - PoH / PoE+ (740 W) - AC 100 - 240 V - for Brocade ICX 7150-48ZP
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
Network
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
IGMP proxy
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4095
Ethernet LAN data rates
101001000 Mbit/s
Auto MDI/MDI-X
Yes
10G support
No
Virtual LAN features
VLAN support
Yes
Number of VLANs
4095
Data transmission
Number of VLANs
4095
Jumbo frames
9216
Packet buffer memory
4 MB
MAC address table
16384 entries
Switching capacity
304 Gbit/s
Number of trunks
16
Jumbo frames support
Yes
Forwarding rate
226 Mpps
Performance
Packet buffer memory
4 MB
Noise level
52 dB
Mean time between failures (MTBF)
104626 h
Flash memory
2000 MB
Technical details
Product colour
Black
Noise level
52 dB
Mean time between failures (MTBF)
104626 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity
8
USB 2.0 ports quantity
1
Security
Loop protection
Yes
BPDU filtering/protection
Yes
SSH/SSL support
Yes
IGMP snooping
Yes
Password protection
Yes
Authentication type
HWTACACSHWTACACS+RADIUS
IGMP proxy
Yes
DHCP features
DHCP snooping
Multicast features
Multicast support
Yes
Protocols
GARP VLAN Registration Protocol (GVRP)
Yes
Memory
Packet buffer memory
4 MB
Flash memory
2000 MB
Design
Product colour
Black
Airflow direction
Front-to-back airflow
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
1480 W
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
32
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-25 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-5 - 45 °C
Operating relative humidity (H-H)
5 - 95%
Heat dissipation
3030 BTU/h
Weight & dimensions
Width
17.3" (440 mm)
Depth
13.1" (332 mm)
Height
1.73" (44 mm)
Weight
14.6 lbs (6.61 kg)
Other features
Ethernet LAN data rates
101001000 Mbit/s
Ruckus ICX 7150-48ZP - Z-Series - switch - L3 - managed - 16 x 100/1000/2.5G (PoH) + 32 x 10/100/1000 (PoE+) + 8 x 10 Gigabit SFP+ (uplink) - front to back airflow - rack-mountable - PoH / PoE+ (740 W) - AC 100 - 240 V - for Brocade ICX 7150-48ZP
| Length | 33.20 cm |
| Width | 44.00 cm |
| Height | 4.40 cm |
| Weight | 6.620000 kgs |
