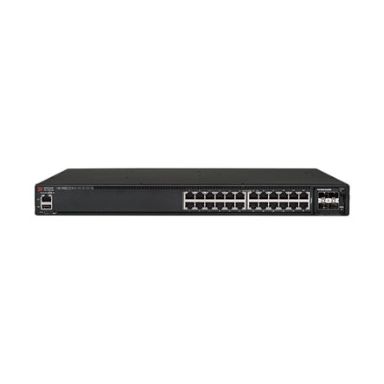

Ruckus ICX 7450-24 - Switch - L3 - managed - 24 x 10/100/1000 - rack-mountable
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T100BASE-TX1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| USB 2.0 ports quantity | 2 |
| Console port | USB |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10BASE-T100BASE-TX1000BASE-T |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4096 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Data transmission | |
| Number of VLANs | 4096 |
| Jumbo frames | 9216 |
| MAC address table | 32000 entries |
| Switching capacity | 288 Gbit/s |
| Number of trunks | 124 |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Performance | |
| Stackable | Yes |
| Expansion module support | Yes |
| Physical stacking (units) | 12 |
| Noise level | 46 dB |
| Mean time between failures (MTBF) | 399973 h |
| Technical details | |
| Expansion module support | Yes |
| Physical stacking (units) | 12 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Noise level | 46 dB |
| Mean time between failures (MTBF) | 399973 h |
| Rack mounting | Yes |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Security algorithms | 802.1x RADIUSAESEAPSSHSSH-2 |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3 TFTP TELNET Bootp HTTPS |
| Supported network protocols | IPv4 / IPv6 |
| Design | |
| DIN rail mounting | No |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Indication | |
| LED indicators | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 63 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 472440.9" (0 - 12000 m) |
| Heat dissipation | 235 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 15.5" (393.7 mm) |
| Height | 1.72" (43.7 mm) |
| Weight | 14.1 lbs (6.4 kg) |
Ruckus ICX 7450-24 - Switch - L3 - managed - 24 x 10/100/1000 - rack-mountable
| Length | 15.5 cm |
| Width | 17.3 cm |
| Height | 1.7 cm |
| Weight | 1.000000 kgs |
