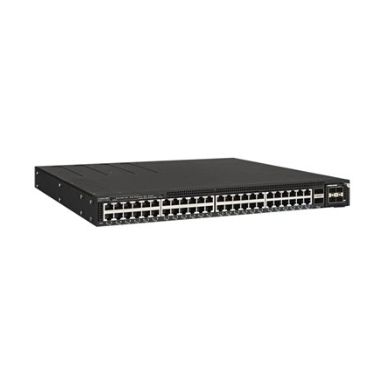

Ruckus ICX 7550-48ZP - Switch - L3 - managed - 36 x 10/100/1000/2.5G (PoE++) + 12 x 100/1000/2.5/5/10G (PoE++) + 2 x 40/100 Gigabit QSFP+ (uplink / stacking) - front to back airflow - rack-mountable - PoE++ (2000 W)
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS | |
---|---|
Product Description | Ruckus ICX 7550-48ZP - switch - 48 ports - managed - rack-mountable |
Device Type | Switch - 48 ports - L3 - managed - stackable |
Enclosure Type | Front to back airflow rack-mountable 1U |
Subtype | 10 Gigabit Ethernet |
Power Over Ethernet (PoE) | PoE++ |
PoE Budget | 2000 W |
Jumbo Frame Support | 12288 bytes |
Power | AC 120/230 V (50/60 Hz) |
Power Redundancy | Yes |
Dimensions (WxDxH) | 17.3 in x 16 in x 1.7 in |
Weight | 16.23 lbs |
General | |
Enclosure Type | Front to back airflow rack-mountable 1U |
Subtype | 10 Gigabit Ethernet |
Power Over Ethernet (PoE) | PoE++ |
PoE Budget | 2000 W |
Jumbo Frame Support | 12288 bytes |
Max Units In A Stack | 12 |
Encryption Algorithm | AES |
RAM | 4 GB |
Flash Memory | 4 GB |
Power | |
Power Device | Internal power supply - hot-plug |
Installed Qty | 0 (installed) / 2 (max) |
Power Redundancy | Yes |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Power Provided | 1200 Watt |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 1183.7 Watt |
Miscellaneous | |
MTBF | 213665 hours |
Dimensions & Weight | |
Width | 17.3 in |
Depth | 16 in |
Height | 1.7 in |
Weight | 16.23 lbs |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 113 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 95% (non-condensing) |
Ruckus ICX 7550-48ZP - Switch - L3 - managed - 36 x 10/100/1000/2.5G (PoE++) + 12 x 100/1000/2.5/5/10G (PoE++) + 2 x 40/100 Gigabit QSFP+ (uplink / stacking) - front to back airflow - rack-mountable - PoE++ (2000 W)
Length | 16 cm |
Width | 17.3 cm |
Height | 1.7 cm |
Weight | 1.000000 kgs |
