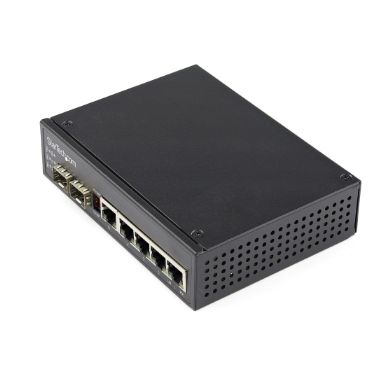

StarTech.com Industrial 5 Port Gigabit Ethernet Switch 5 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Terminal block port
Yes
Copper ethernet cabling technology
10BASE-T, 10BASE-TX, 1000BASE-T, 1000BASE-TX
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Performance
Packet buffer memory
1 MB
Auto-negotiation
Yes
Mean time between failures (MTBF)
525058 h
Harmonized System (HS) code
85176990
Technical details
Product colour
Black
Mean time between failures (MTBF)
525058 h
Housing material
Steel
Rack mounting
No
Management features
Switch type
Unmanaged
Network
Copper ethernet cabling technology
10BASE-T, 10BASE-TX, 1000BASE-T, 1000BASE-TX
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Data transmission
Jumbo frames
9000
Packet buffer memory
1 MB
Switching capacity
12 Gbit/s
Jumbo frames support
Yes
Protocols
Supported network protocols
CSMA/CD
Certificates
Safety
EN60950-1, MET (UL) 60950-1
Certification
CE, RoHS, FCC, UL
Memory
Packet buffer memory
1 MB
Design
Wall mountable
Yes
International Protection (IP) code
IP30
DIN rail mounting
Yes
Safety
EN60950-1, MET (UL) 60950-1
Product colour
Black
LED indicators
Link, PoE, Power
Housing material
Steel
Certification
CE, RoHS, FCC, UL
Rack mounting
No
Indication
LED indicators
Link, PoE, Power
Power
Power consumption (max)
126 W
Surge protection voltage
2 kV
DC input voltage
48 - 56 V
Surge protection
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
120 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
105 mm
Depth
142 mm
Height
36.2 mm
Weight
492 g
Packaging data
Terminal block included
Yes
Quick start guide
Yes
Package width
211 mm
Package depth
162 mm
Package height
64 mm
Package weight
737 g
Logistics data
Master (outer) case width
355 mm
Master (outer) case length
345 mm
Master (outer) case height
225 mm
Products per master (outer) case
10 pc(s)
Harmonized System (HS) code
85176990
Other features
Terminal block port
Yes
Packaging content
Terminal block included
Yes
Quick start guide
Yes
