Performance | |
---|---|
Auto-negotiation | Yes |
Maximum data transfer rate | 200 Mbit/s |
Maximum cable length | 100 m |
Buffer size | 56 KB |
Mean time between failures (MTBF) | 1179133 h |
Power | |
Input voltage | 12 - 48 V |
Power consumption (max) | 2.12 W |
Technical details | |
Product colour | Black |
Mean time between failures (MTBF) | 1179133 h |
Housing material | Plastic |
Rack mounting | Yes |
Management features | |
Switch type | Unmanaged |
Quality of Service (QoS) support | Yes |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network | |
Networking standards | IEEE 802.1p-IEEE 802.3-IEEE 802.3az-IEEE 802.3u |
Full duplex | Yes |
Auto MDI/MDI-X | Yes |
10G support | No |
Auto-negotiation | Yes |
Data transmission | |
Store-and-forward | Yes |
Jumbo frames support | No |
Certificates | |
Certification | CE- FCC |
Design | |
International Protection (IP) code | IP30 |
Product colour | Black |
LED indicators | Activity- Link- Power |
Housing material | Plastic |
Certification | CE- FCC |
Rack mounting | Yes |
Regulatory Approvals | EN61000-6-2- EN61000-6-4- EN61000-4-3- EN61000-4-4- EN61000-4-6- EN61000-4-8- IEC60068-2-6 Fc- IEC60068-2-27 Ea |
Indication | |
LED indicators | Activity- Link- Power |
Operational conditions | |
Storage temperature (T-T) | -25 - 85 °C |
Operating temperature (T-T) | -10 - 60 °C |
Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
Width | 25 mm |
Depth | 70 mm |
Height | 110 mm |
Weight | 148 g |
Packaging data | |
Terminal block included | Yes |
Package width | 178 mm |
Package depth | 198 mm |
Package height | 79 mm |
Package weight | 312 g |
Manual | Yes |
Other features | |
Input voltage | 12 - 48 V |
Packaging content | |
Terminal block included | Yes |
Manual | Yes |

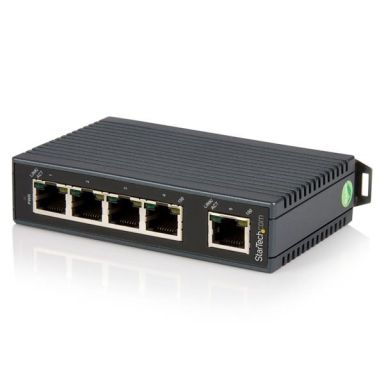

StarTech.com 5-port industrial Ethernet switch - DIN rail mountable
