Ports & interfaces | |
---|---|
Terminal block port | Yes |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Power connector | DC-in jack |
Virtual LAN features | |
Virtual LAN features | Tagged VLAN |
Power | |
Input voltage | 12 - 48 V |
Power connector | DC-in jack |
Power plug type | Type M |
Input current | 1 A |
Technical details | |
Product colour | Black |
Mean time between failures (MTBF) | 100000 h |
Housing material | Steel |
Management features | |
Switch type | Managed |
Switch layer | L2 |
Network | |
Networking standards | IEEE 802.1ab-IEEE 802.1p-IEEE 802.1s-IEEE 802.1w-IEEE 802.1x-IEEE 802.3-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3u-IEEE 802.3z |
Full duplex | Yes |
Spanning tree protocol | Yes |
Link aggregation | Yes |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
10G support | No |
Virtual LAN features | Tagged VLAN |
Data transmission | |
Jumbo frames | 9000 |
Store-and-forward | Yes |
Jumbo frames support | Yes |
Security | |
Access Control List (ACL) | Yes |
Certificates | |
Certification | CE- FCC- RoHS |
Design | |
Wall mountable | Yes |
International Protection (IP) code | IP30 |
Product colour | Black |
LED indicators | Activity- Link- Power |
Housing material | Steel |
Certification | CE- FCC- RoHS |
Performance | |
Maximum data transfer rate | 2000 Mbit/s |
Buffer size | 512 KB |
Mean time between failures (MTBF) | 100000 h |
Indication | |
LED indicators | Activity- Link- Power |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) power per port | 30 W |
Power over Ethernet plus (PoE+) ports quantity | 4 |
Total Power over Ethernet (PoE) budget | 120 W |
Power over Ethernet (PoE) | Yes |
Operational conditions | |
Storage temperature (T-T) | -40 - 90 °C |
Operating temperature (T-T) | -40 - 75 °C |
Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
Width | 148 mm |
Depth | 134 mm |
Height | 25 mm |
Weight | 650 g |
Packaging data | |
Terminal block included | Yes |
Quick start guide | Yes |
Package width | 173 mm |
Package depth | 30 mm |
Package height | 92 mm |
Package weight | 930 g |
Other features | |
Terminal block port | Yes |
Input voltage | 12 - 48 V |
Packaging content | |
Terminal block included | Yes |
Quick start guide | Yes |

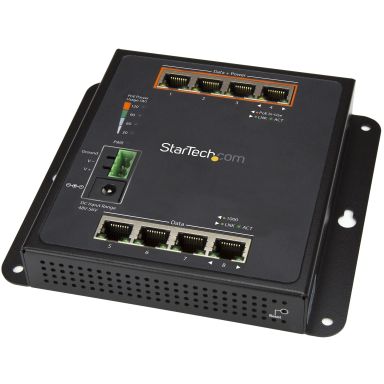

StarTech.com 8-Port (4 PoE+) Gigabit Ethernet Switch - Managed - Wall Mount with Front Access
