Ports & interfaces | |
---|---|
Terminal block port | Yes |
Copper ethernet cabling technology | 10BASE-T-100BASE-TX-1000BASE-TX |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Power connector | DC-in jack |
Virtual LAN features | |
Virtual LAN features | Tagged VLAN |
Power | |
Power connector | DC-in jack |
Output voltage | 12 V |
Power plug type | Type M |
Output current | 1.5 A |
Power supply included | Yes |
DC input voltage | 12 - 48 V |
Technical details | |
Product colour | Black |
Mean time between failures (MTBF) | 100000 h |
Housing material | Steel |
Management features | |
Switch type | Managed |
Switch layer | L2 |
Network | |
Copper ethernet cabling technology | 10BASE-T-100BASE-TX-1000BASE-TX |
Networking standards | IEEE 802.1D-IEEE 802.1Q-IEEE 802.1ab-IEEE 802.1p-IEEE 802.1s-IEEE 802.1w-IEEE 802.3-IEEE 802.3ab-IEEE 802.3ad-IEEE 802.3u-IEEE 802.3x |
Full duplex | Yes |
Spanning tree protocol | Yes |
Link aggregation | Yes |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
Virtual LAN features | Tagged VLAN |
Data transmission | |
Jumbo frames | 9000 |
Store-and-forward | Yes |
Jumbo frames support | Yes |
Security | |
Access Control List (ACL) | Yes |
Protocols | |
Management protocols | IPv4- IPv6 |
Certificates | |
Certification | CE- FCC- RoHS- TAA |
Design | |
Wall mountable | Yes |
International Protection (IP) code | IP30 |
Product colour | Black |
LED indicators | Activity- Link- Power |
Housing material | Steel |
Certification | CE- FCC- RoHS- TAA |
Performance | |
Maximum data transfer rate | 2000 Mbit/s |
Maximum cable length | 100 m |
Buffer size | 512 KB |
Plug and Play | Yes |
Mean time between failures (MTBF) | 100000 h |
Indication | |
LED indicators | Activity- Link- Power |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Storage temperature (T-T) | -40 - 90 °C |
Operating temperature (T-T) | -40 - 75 °C |
Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
Width | 148 mm |
Depth | 134 mm |
Height | 25 mm |
Weight | 490 g |
Packaging data | |
Terminal block included | Yes |
AC adapter included | Yes |
Washers included | Yes |
Screws included | Yes |
Pinlock included | Yes |
Dust cap included | Yes |
DIN rail included | Yes |
Quick start guide | Yes |
Package width | 170 mm |
Package depth | 300 mm |
Package height | 90 mm |
Package weight | 964 g |
Other features | |
Terminal block port | Yes |
Packaging content | |
Terminal block included | Yes |
AC adapter included | Yes |
Washers included | Yes |
Screws included | Yes |
Pinlock included | Yes |
Dust cap included | Yes |
DIN rail included | Yes |
Quick start guide | Yes |

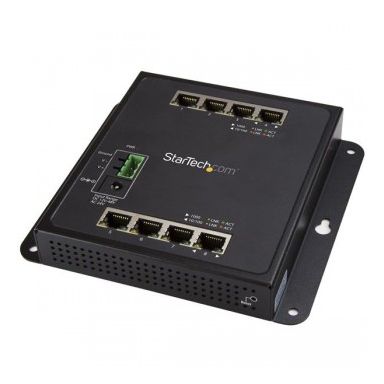

StarTech.com 8-Port Gigabit Ethernet Switch - Managed - Wall Mount with Front Access
