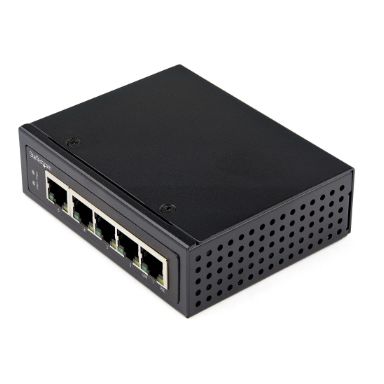

StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Terminal block port
Yes
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Technical details
Product colour
Black
Mean time between failures (MTBF)
538451 h
Housing material
Steel
Rack mounting
No
Management features
Switch type
Unmanaged
Network
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Data transmission
Jumbo frames
9000
Jumbo frames support
Yes
Protocols
Supported network protocols
CSMA/CD
Certificates
Safety
EN60950-1
Certification
CE, FCC, RoHS, UL
Design
Wall mountable
Yes
International Protection (IP) code
IP30
DIN rail mounting
Yes
Safety
EN60950-1
Product colour
Black
LED indicators
Yes
Housing material
Steel
Certification
CE, FCC, RoHS, UL
Rack mounting
No
Performance
Maximum cable length
100 m
Mean time between failures (MTBF)
538451 h
Harmonized System (HS) code
85176990
Indication
LED indicators
Yes
Power
Power plug type
Type N
Surge protection voltage
2 kV
DC input voltage
48 - 56 V
Surge protection
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
5
Total Power over Ethernet (PoE) budget
120 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
81.5 mm
Depth
104 mm
Height
32 mm
Weight
150.6 g
Packaging data
Terminal block included
Yes
Quick start guide
Yes
Package width
211 mm
Package depth
162 mm
Package height
64 mm
Package weight
392.6 g
Logistics data
Master (outer) case width
355 mm
Master (outer) case length
345 mm
Master (outer) case height
225 mm
Products per master (outer) case
10 pc(s)
Harmonized System (HS) code
85176990
Other features
Terminal block port
Yes
Packaging content
Terminal block included
Yes
Quick start guide
Yes
StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE
