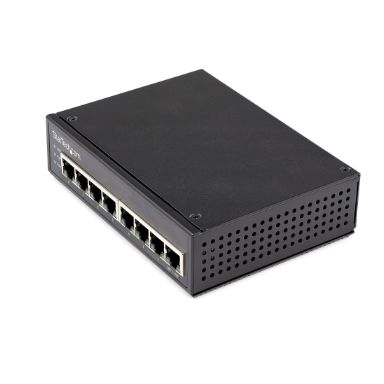

StarTech.com Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - GbE PoE+ Unma
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Terminal block port
Yes
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Technical details
Product colour
Black
Mean time between failures (MTBF)
693764 h
Housing material
Aluminium
Rack mounting
No
Management features
Switch type
Unmanaged
Network
Cable types supported
Cat5e, Cat6
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Data transmission
Jumbo frames
9000
Switching capacity
16000 Gbit/s
Jumbo frames support
Yes
Certificates
Certification
CE, FCC, UL, ROhS
Design
Wall mountable
Yes
International Protection (IP) code
IP30
DIN rail mounting
Yes
Product colour
Black
LED indicators
Yes
Housing material
Aluminium
Certification
CE, FCC, UL, ROhS
Rack mounting
No
Performance
Buffer size
128 KB
Mean time between failures (MTBF)
693764 h
Harmonized System (HS) code
85176990
Indication
LED indicators
Yes
Power
Power consumption (max)
206 W
Surge protection voltage
2 kV
DC input voltage
48 - 56 V
Surge protection
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
200 W
Power over Ethernet (PoE)
Yes
Weight & dimensions
Width
105 mm
Depth
142 mm
Height
39.6 mm
Weight
536 g
Packaging data
Terminal block included
Yes
Quick start guide
Yes
Package width
211 mm
Package depth
162 mm
Package height
64 mm
Package weight
781 g
Logistics data
Master (outer) case width
355 mm
Master (outer) case length
345 mm
Master (outer) case height
225 mm
Products per master (outer) case
10 pc(s)
Harmonized System (HS) code
85176990
Other features
Terminal block port
Yes
Packaging content
Terminal block included
Yes
Quick start guide
Yes
