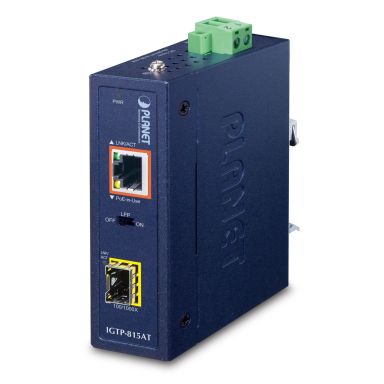

PLANET IGTP-815AT network media converter 1000 Mbit/s Blue
In Stock
|
$170.18
$204.22 (Inc. VAT)
Network
Fiber optic connector
SFP
Flow control support
Yes
Auto-negotiation
Yes
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Converter input interface
10Base-T, 100Base-T, 1000Base-SX, 1000Base-T
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet interface type
Gigabit Ethernet
Duplex system
Full, Half
Converter output interface
1000Base-BX, 1000Base-LX, 1000Base-SX
Auto MDI/MDI-X
Yes
Maximum data transfer rate
1000 Mbit/s
Technical details
International Protection (IP) code
IP30
Housing material
Metal
Maximum transfer distance
100 m
Internal
No
Harmonized System (HS) code
85176990
Performance
Flow control support
Yes
Auto-negotiation
Yes
Maximum transfer distance
100 m
Ports & interfaces
Power over Ethernet (PoE) ports quantity
1
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SFP
Indication
LED indicators
PoE, Power, System
Design
DIN rail mounting
Yes
International Protection (IP) code
IP30
Housing material
Metal
LED indicators
PoE, Power, System
Product colour
Blue
Certification
FCC 15 A, CE
Internal
No
Power
Power consumption (max)
1.12 W
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
36 W
Input voltage
48 - 56 V
External power adapter
Yes
Colour
Product colour
Blue
Weight & dimensions
Width
30 mm
Depth
70 mm
Weight
231 g
Height
104 mm
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 90%
Storage relative humidity (H-H)
5 - 90%
Certificates
Certification
FCC 15 A, CE
PLANET IGTP-815AT network media converter 1000 Mbit/s Blue
