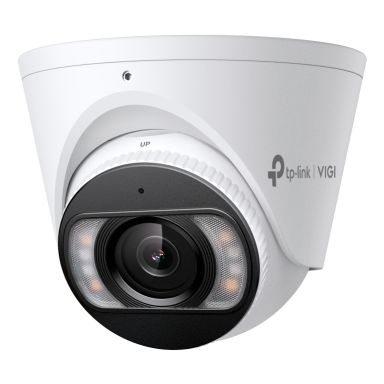

TP-Link INSIGHT S445 Turret IP security camera Outdoor 2688 x 1520 pixels Ceiling

Infrared (IR) cut-off filter

Yes

Remote viewing

Yes

Type

IP security camera

Connectivity technology

Wired

Placement supported

Outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Maximum operating distance

80 m

Dynamic range

120 dB

Weatherproof

Yes

Form factor

Turret

Product colour

White

Mounting type

Ceiling

Protection features

Waterproof

International Protection (IP) code

IP67

Housing material

Metal

Minimum illumination

0 lx

Tilt angle range

0 - 90°

Camera shutter speed

1/3 to 1/10000

Lens viewing angle, horizontal

80.4°

Lens viewing angle, vertical

41.8°

Lens viewing angle, diagonal

98.7°

Progressive scan

Yes

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Sensor type (panoramic camera)

CMOS

Signal-to-Noise Ratio (SNR) (panoramic camera)

52 dB

Digital Wide Dynamic Range (DWDR) (panoramic camera)

Yes

Maximum aperture number

1.6

Detect distance

80 m

Observe distance

33 m

Recognize distance

16 m

Identify distance

8 m

Fixed focus

Yes

Fixed focal length

4 mm

Night vision

Yes

LED type

IR/White

Image quality adjustment

Brightness, Contrast, Mirror, Saturation, Sharpness

Highlight Compensation (HLC)

Yes

Digital Wide Dynamic Range (DWDR)

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate

Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps

Back Light Compensation (BLC)

Yes

Video compression formats

H.264, H.264+, H.265, H.265+

Maximum resolution

2688 x 1520 pixels

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520

Total megapixels

4 MP

Video recording

Yes

Audio input channels

1.0 channels

Audio output channels

1.0 channels

Built-in speaker(s)

Yes

Sample rate

8 kHz

Built-in microphone

Yes

Audio system

2-way

Audio formats supported

G.711 A-law

Bit rate range

0 - 64 Kbit/s

Number of microphones

1

Bluetooth

No

Networking standards

IEEE 802.3af, IEEE 802.3at

Ethernet LAN

Yes

Wi-Fi

No

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

Live view

Yes

Maximum memory card size

512 GB

Compatible memory cards

MicroSD (TransFlash)

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Alert notification type

Push notification

Motion sensor

Yes

Video motion detection

Yes

IP address filtering

Yes

HTTPS encryption

Yes

Password protection

Yes

Mirror

Yes

Built-in siren

Yes

Digest authentication

Yes

Web browser

Yes

Reset button

Yes

Cloud-managed

Yes

Power source type

DC, PoE

Power consumption (max)

11 W

Power consumption (Power over Ethernet (PoE))

12 W

DC output voltage

12

Operating temperature (T-T)

-30 - 60 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Package type

Box

Length

111 mm

Width

111 mm

Height

83.7 mm

Weight

480 g

Package type

Box

Number of cameras

1

Screws included

Yes

Package type

Box

Mounting kit

Yes

Manual

Yes

Drilling template included

Yes

Video compression formats

H.264, H.264+, H.265, H.265+
