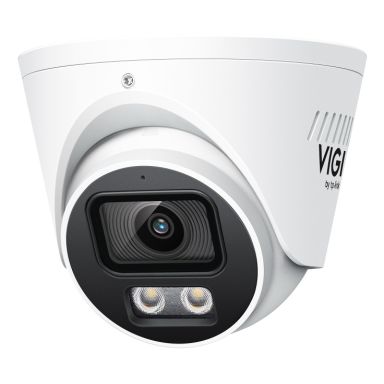

TP-Link VIGI InSight S445S(2.8mm) Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall

Auto pan mode

Yes

Infrared (IR) cut-off filter

Yes

Type

IP security camera

Connectivity technology

Wired

Placement supported

Outdoor

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Alarm input/output

Yes

Certification

CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF

Dynamic range

120 dB

Weatherproof

Yes

Form factor

Dome

Product colour

White

Mounting type

Ceiling/wall

International Protection (IP) code

IP67

Housing material

Metal

Minimum illumination

0.0005 lx

Tilt angle range

0 - 75°

Pan range

0 - 360°

White balance

Area white balance

Angle of rotation

360°

Camera shutter type

Electronic

Camera shutter speed

1/3 - 1/10000 s

Lens viewing angle, horizontal

112.5°

Lens viewing angle, vertical

61.4°

Lens viewing angle, diagonal

137°

Number of Privacy masking areas

4

Progressive scan

Yes

Sensor type

CMOS

Progressive scan

Yes

Optical sensor size

25.4 / 79 mm (1 / 79")

Sensor type (panoramic camera)

CMOS

Signal-to-Noise Ratio (SNR) (panoramic camera)

52 dB

Number of lenses

1

Maximum aperture number

1

Detect distance

59 m

Observe distance

25 m

Recognize distance

12 m

Identify distance

6 m

Fixed focus

Yes

Fixed focal length

2.8 mm

Night vision

Yes

Infra-red wavelength

850 nm

Noise reduction

Yes

Image quality adjustment

Brightness, Contrast, DNR, Saturation, Sharpness

Smart IR

Yes

Region of Interest (ROI) encoding

Yes

Highlight Compensation (HLC)

Yes

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Bit rate

64 Kbit/s

Back Light Compensation (BLC)

Yes

Video compression formats

H.264, H.264+, H.265, H.265+

Maximum resolution

2688 x 1520 pixels

Video formats supported

H.264, H.264+, H.265, H.265+

Supported graphics resolutions

320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520

Frame rate

30 fps

Video streaming

Yes

Total megapixels

4 MP

Thermal frame rate (PAL)

60 Hz

Thermal frame rate (NTSC)

50 Hz

Video recording

Yes

Audio input channels

2.0 channels

Audio output channels

2.0 channels

Built-in speaker(s)

Yes

Built-in microphone

Yes

Audio system

2-way

Bit rate range

256 - 6000 Kbit/s

Number of microphones

1

Networking standards

IEEE 802.1x, IEEE 802.3at

Ethernet LAN

Yes

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP

Number of simultaneous live view channels

3 channels

Live view

Yes

Cloud services supported

FTP

Maximum memory card size

512 GB

Card reader integrated

Yes

Built-in HDD

No

Compatible memory cards

MicroSD (TransFlash)

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Alert notification type

E-mail, Push notification

Intelligent Video Surveillance (IVS) system features

Abandoned object, Abnormal sound detection, Intrusion, Line crossing detection, People counting, Region entrance detection, Region exiting detection, Scene change, Vehicle detection

Motion sensor

Yes

Video motion detection

Yes

Password protection type

User

IP address filtering

Yes

HTTPS encryption

Yes

Active tampering alarm

Yes

Password protection

Yes

Mirror

Yes

Human and vehicle targets classification

Yes

Digest authentication

Yes

Alarm input channels

1

Alarm output channels

1

Cloud services supported

FTP

Web browser

Yes

Web-based management

Yes

Reset button

Yes

Behavior analysis

Audio exception detection, Object removal detection

Cloud-managed

Yes

Power source type

DC, PoE

Power consumption (max)

17.9 W

AC input voltage

12 V

Power consumption (typical)

15.6 W

Certification

CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF

Operating temperature (T-T)

-30 - 60 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Package type

Box

Width

111 mm

Depth

111 mm

Height

81.4 mm

Weight

550 g

Package type

Box

Compliance certificates

CE

Number of cameras

1

Package type

Box

Mounting kit

Yes

Compliance certificates

CE

Video compression formats

H.264, H.264+, H.265, H.265+
