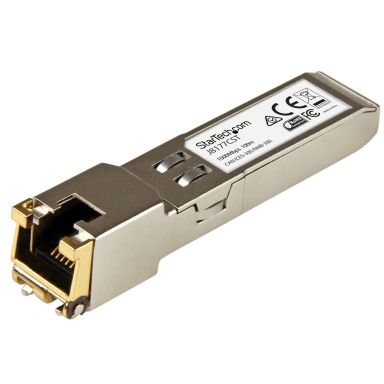

StarTech.com HP J8177C Compatible SFP Transceiver Module - 1000BASE-T
In Stock
|
£32.76
£39.31 (Inc. VAT)
Network
SFP transceiver type
Copper
Fiber optic connector
MiniGBIC
Networking standards
IEEE 802.3ab
Ethernet LAN (RJ-45) ports
1
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Technical details
Package width
118 mm
Package height
34 mm
Hot-swap
Yes
Auto MDI/MDI-X
Yes
Maximum transfer distance
100 m
Sustainability certificates
RoHS
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Performance
Product colour
Silver
Housing material
Aluminium
Hot-swap
Yes
Mean time between failures (MTBF)
4655371 h
SFP transceiver type
Copper
Digital Diagnostics Monitoring (DDM)
No
Auto-negotiation
Yes
Fiber optic connector
MiniGBIC
Networking standards
IEEE 802.3ab
Auto MDI/MDI-X
Yes
Ethernet LAN (RJ-45) ports
1
Maximum transfer distance
100 m
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Harmonized System (HS) code
85369010
Features
Product colour
Silver
Housing material
Aluminium
Hot-swap
Yes
Certification
CE- FCC
Mean time between failures (MTBF)
4655371 h
Power
Power consumption (typical)
1.3 W
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
30 - 75%
Weight & dimensions
Width
14 mm
Depth
68 mm
Height
14 mm
Weight
25 g
Package depth
92 mm
Package width
118 mm
Package height
34 mm
Package weight
53 g
Packaging data
Package depth
92 mm
Number of products included
1 pc(s)
Package width
118 mm
Package height
34 mm
Package weight
53 g
Certificates
Certification
CE- FCC
Packaging content
Number of products included
1 pc(s)
Logistics data
Master (outer) case width
355 mm
Master (outer) case length
410 mm
Master (outer) case height
340 mm
Products per master (outer) case
100 pc(s)
Harmonized System (HS) code
85369010
