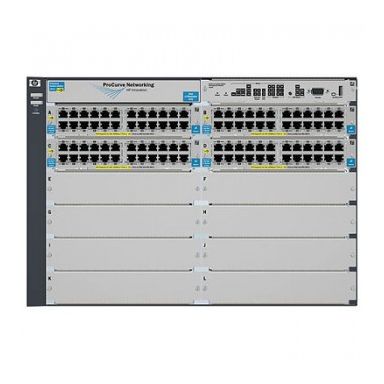

HPE E5412-92G-PoE+/4G-SFP v2 zl w/PS Managed Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
MIB support
MLDv1 MIB, MIB II, Bridge MIB, RIPv2 MIB, OSPFv2 MIB, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB, VRRP MIB, Ping MIB
Ports & interfaces
Copper ethernet cabling technology
1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T
SFP module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
92
SFP/SFP+ slots quantity
4
Network
IGMP snooping
Yes
Copper ethernet cabling technology
1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
Spanning tree protocol
Yes
Routing entries
10000
Rate limiting
Yes
Number of VLANs
2048
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
Number of VLANs
2048
Data transmission
Number of VLANs
2048
Throughput
564.2 mpps
Packet buffer memory
4 MB
MAC address table
64000 entries
Supported data transfer rates
10/100 Mbps
Switching capacity
758.4 Gbit/s
Maximum data transfer rate
1 Gbit/s
Sound emission
Acoustic pressure emissions
57.5 dB
Performance
Packet buffer memory
4 MB
Processor frequency
666 MHz
Noise level
64 dB
Memory type
DDR-SDRAM
Internal memory
256 MB
Flash memory
128 MB
Built-in processor
Yes
Processor model
PowerPC MPC8540
Weight & dimensions
Weight (imperial)
34 kg (74.9 lbs)
Dimensions (W x D x H) (imperial)
444.5 x 450.9 x 307.3 mm (17.5 x 17.8 x 12.1")
Weight
34 kg
Technical details
Processor frequency
666 MHz
Noise level
64 dB
Built-in processor
Yes
Security
SSH/SSL support
Yes
Security algorithms
802.1x RADIUS, SSH, SSL/TLS
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server, DHCP client
Multicast features
Multicast support
Yes
Protocols
Management protocols
IGMPv3, SNMPv1/v2c/v3, XRMON
Switching protocols
RIPv1
Data link protocols
LLDP
Supported network protocols
IPv6, UDP, TFTP, ICMP, TCP, ARP, Telnet, BOOTP, TFTP, CIDR, SNTP
Certificates
Safety
CSA, UL, IEC, EN
Electromagnetic compatibility
FCC, VCCI, EN/CISPR
Memory
Packet buffer memory
4 MB
Memory type
DDR-SDRAM
Internal memory
256 MB
Flash memory
128 MB
Design
Safety
CSA, UL, IEC, EN
Electromagnetic compatibility
FCC, VCCI, EN/CISPR
Power
Power consumption (typical)
312 W
Number of power supply units
2
Input voltage
100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
32 - 131 °F
Operating temperature (T-T)
0 - 55 °C
Operating relative humidity (H-H)
15 - 95%
Operating altitude
0 - 3000 m
Heat dissipation
7400 BTU/h
Other features
Latency
3.7µs/2.1µs
Dimensions (WxDxH)
450.9 x 444.5 x 307.3 mm
Connectivity technology
Wired
Wi-Fi
No
Power supply
1500 W
Networking features
Gigabit Ethernet
Mounting
EIA
Input voltage
100 - 240 V
Input frequency
50/60 Hz
Weight (imperial)
34 kg (74.9 lbs)
Dimensions (W x D x H) (imperial)
444.5 x 450.9 x 307.3 mm (17.5 x 17.8 x 12.1")
Acoustic pressure emissions
57.5 dB
