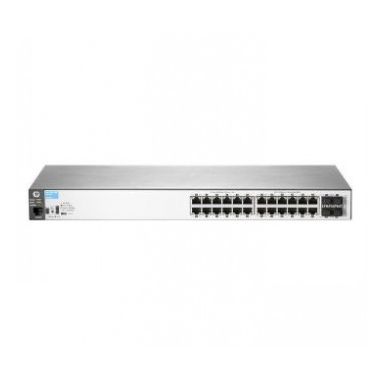

HP E 2530-24G 24 Ports Manageable Ethernet Switch - 2 Layer Supported - 1U High - Rack-mountable

HP E 2530-24G 24 Ports Manageable Ethernet Switch - 2 Layer Supported - 1U High - Rack-mountable

   0 Reviews   | Add your review
In Stock In Stock
Brand: HPE
SKU: J9776A
Condition: NEW
Delivery: Next Day*
Product Type: Network Switches
Call For Price (0808 189 1246)
Specifications
Ports & interfaces
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
4
Virtual LAN features
VLAN support
Yes
Performance
Packet buffer memory
1.5 MB
Virtual stacking (units)
16
Processor frequency
800 MHz
Memory type
DDR3-SDRAM
Internal memory
256 MB
Flash memory
128 MB
Built-in processor
Yes
Technical details
Virtual stacking (units)
16
Form factor
1U
Product colour
Grey
Processor frequency
800 MHz
Rack mounting
Yes
Built-in processor
Yes
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2
Network
Auto-sensing
Yes
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Networking standards
IEEE 802.3IEEE 802.3abIEEE 802.3u
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Data transmission
Throughput
41.6 Mpps
Latency (10-100 Mbps)
7.4 ‚µs
Latency (1 Gbps)
2.3 ‚µs
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
56 Gbit/s
Jumbo frames support
Yes
Security
SSH/SSL support
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server
Memory
Packet buffer memory
1.5 MB
Memory type
DDR3-SDRAM
Internal memory
256 MB
Flash memory
128 MB
Design
Form factor
1U
Product colour
Grey
Rack mounting
Yes
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
48 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 ‚°C
Storage relative humidity (H-H)
15 - 90%
Operating temperature (T-T)
0 - 45 ‚°C
Operating relative humidity (H-H)
15 - 95%
Heat dissipation
164 BTU/h
Weight & dimensions
Width
443 mm
Depth
254 mm
Height
44.5 mm
Weight
2.77 kg
HP E 2530-24G 24 Ports Manageable Ethernet Switch - 2 Layer Supported - 1U High - Rack-mountable
Length 22.8000 cm
Width 14.0000 cm
Height 5.3000 cm
Weight 2.770000 kgs
