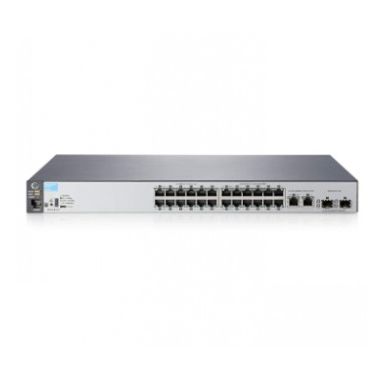

HPE Aruba 2530-24 Managed L2 Fast Ethernet (10/100) 1U
O Reviews
| Write a review
In Stock
|
Call For Price
(0808 189 1246)
HPE Aruba 2530-24 Managed L2 Fast Ethernet (10/100) 1U
| Specifications | |
|---|---|
| Ports & interfaces | |
| Copper ethernet cabling technology | 100BASE-TX10BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 2 |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Virtual stacking (units) | 16 |
| Processor frequency | 800 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Built-in processor | Yes |
| Technical details | |
| Virtual stacking (units) | 16 |
| Form factor | 1U |
| Product colour | Grey |
| Processor frequency | 800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Management features | |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Network | |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 100BASE-TX10BASE-T |
| Networking standards | IEEE 802.3IEEE 802.3abIEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Throughput | 9.5 Mpps |
| Latency (10-100 Mbps) | 1.7 µs |
| Latency (1 Gbps) | 1.1 µs |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 12.8 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 14.7 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 50 BTU/h |
| Weight & dimensions | |
| Width | 442 mm |
| Depth | 246.4 mm |
| Height | 44.5 mm |
| Weight | 2.59 kg |
| Length | 22.0000 cm |
| Width | 14.0000 cm |
| Height | 5.0000 cm |
| Weight | 4.180000 kgs |
