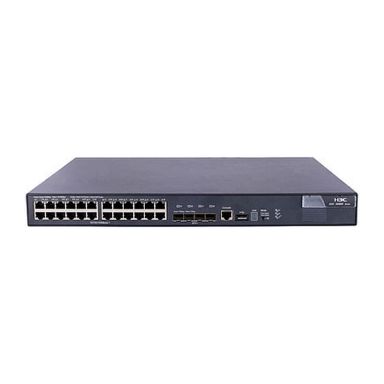

HPE HP 5800-24G Switch
Out of Stock
|
Call For Price (0808 189 1246)
Ports & interfaces
Copper ethernet cabling technology
1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T
Expansion slots
4x SFP + 1 Exp sl
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
SFP/SFP+ slots quantity
4
Power connector
DC-in jack
Performance
Packet buffer memory
4 MB
Stackable
No
Noise level
52.9 dB
Memory type
SDRAM
Internal memory
512 MB
Flash memory
512 MB
Weight & dimensions
Weight (imperial)
6 kg (13.2 lbs)
Dimensions (W x D x H) (imperial)
364.5 x 439.9 x 43.7 mm (14.3 x 17.3 x 1.72")
Weight
6 kg
Power
Power connector
DC-in jack
Power consumption (typical)
15.4 W
Input voltage
100 - 240 V
Power source
AC
Technical details
Form factor
1U
Product colour
Black
Stackable
No
Noise level
52.9 dB
Rack mounting
Yes
Management features
Switch layer
L3
Network
Copper ethernet cabling technology
1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Full duplex
Yes
IP routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Data transmission
Throughput
155 mpps
Packet buffer memory
4 MB
MAC address table
32000 entries
Supported data transfer rates
10/100/1000 Mbps
Switching capacity
208 Gbit/s
Security
DHCP features
DHCP server, DHCP client
Protocols
Management protocols
IMC, SNMP, Telnet, HTTPS, RMON1, FTP
Certificates
Safety
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Electromagnetic compatibility
VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Certification
RoHs
Memory
Packet buffer memory
4 MB
Memory type
SDRAM
Internal memory
512 MB
Flash memory
512 MB
Design
Safety
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Form factor
1U
Product colour
Black
Stackable
No
LED indicators
Yes
Electromagnetic compatibility
VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Certification
RoHs
Rack mounting
Yes
Indication
Power LED
Yes
LED indicators
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
358 BTU/h
Other features
Latency
4.02 µs
Dimensions (WxDxH)
467 x 440 x 43.6 mm
Wi-Fi
Yes
Power LED
Yes
Networking features
Gigabit Ethernet
Input voltage
100 - 240 V
Input frequency
50 / 60 Hz
Expansion slots
4x SFP + 1 Exp sl
Weight (imperial)
6 kg (13.2 lbs)
Dimensions (W x D x H) (imperial)
364.5 x 439.9 x 43.7 mm (14.3 x 17.3 x 1.72")
HPE HP 5800-24G Switch
| Weight | 6.00 kgs |
