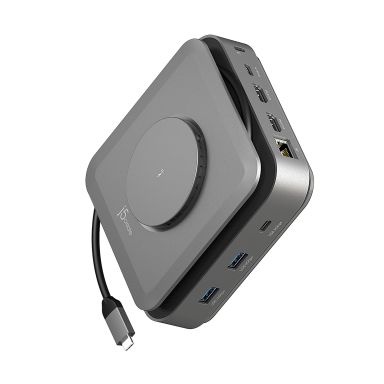

j5create JCD3199 USB-C® Dock Dual 4K HDMI, Space Grey

Combo headphone/mic port

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Headphone connectivity

3.5 mm

Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 2.0 ports quantity

0

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

2

HDMI version

2.0/2.1

Microphone in

Yes

Headphone outputs

1

Connectivity technology

Wired

USB Power Delivery (USB PD)

Yes

USB Power Delivery revision

3.1

USB Power Delivery up to

140 W

USB Type-C DisplayPort Alternate Mode

Yes

Ethernet LAN

Yes

Ethernet LAN data rates

1000 Mbit/s

Ethernet LAN (RJ-45) ports

1

Maximum digital resolution

3840 x 2160 pixels

Country of origin

Taiwan

Product colour

Grey

Card reader integrated

Yes

Data transfer rate

10 Gbit/s

Compatible memory cards

MicroSD (TransFlash), SD

Housing material

Aluminium

Colour name

Space Grey

Maximum refresh rate

60 Hz

Product colour

Grey

Data transfer rate

10 Gbit/s

Cable length

0.695 m

Sustainability compliance

Yes

Master (outer) case GTIN (EAN/UPC)

20847626000762

Warranty period

2 year(s)

Compliance certificates

CE, REACH, RoHS

User guide

No

Products per master (outer) case

4 pc(s)

Master (outer) case width

186 mm

Master (outer) case gross weight

3.2 kg

Master (outer) case length

249 mm

Master (outer) case height

174 mm

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), SD

Power source type

USB

Input current

5 A

Output voltage

20 V

Output current

5 A

Power connector

USB Type-C

Wireless charging power

15 W

Wireless charging

Yes

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Mobile operating systems supported

Yes

Operating temperature (T-T)

-1 - 41 °C

Storage temperature (T-T)

-17 - 68 °C

Operating relative humidity (H-H)

0 - 85%

Storage relative humidity (H-H)

0 - 85%

Sustainability compliance

Yes

Weight

416 g

Width

130 mm

Depth

130 mm

Height

40 mm

Package weight

740 g

Package width

154 mm

Package depth

170.5 mm

Package height

56 mm

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Country of origin

Taiwan

Product colour

Grey

Quantity per pack

1 pc(s)

Package weight

740 g

Package width

154 mm

Package depth

170.5 mm

Package height

56 mm

Stand included

Yes

User guide

No

Quick start guide

Yes

Packaging content

1 - JCD3199 USB-C® Dock Dual 4K HDMI™ 1 - Dock Holder 1 - Quick Installation Guide (QIG)

Manual

No

AC adapter included

No

Quantity per pack

1 pc(s)

Products per master (outer) case

4 pc(s)

Master (outer) case width

186 mm

Master (outer) case gross weight

3.2 kg

Master (outer) case length

249 mm

Master (outer) case height

174 mm

Export Control Classification Number (ECCN)

EAR99

Cable length

0.695 m
