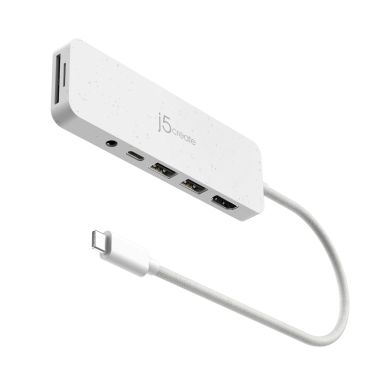

j5create JCD373EW - USB-C Multi-Port Hub with Power Delivery

Host interface

USB Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

HDMI ports quantity

1

Hub interfaces

3.5mm, HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C

Compatible memory cards

MicroSD (TransFlash), SD

Ports quantity

6

Card reader slot

1

USB Type-C DisplayPort Alternate Mode

Yes

Cable length

0.17 m

Plug and Play

Yes

Product colour

White

Cable length

0.17 m

Data transfer rate

5000 Mbit/s

USB Power Delivery

Yes

Compatible products

• Available DisplayPort™ Alt Mode over USB-C® port for video output • Available USB™ Power Delivery over USB-C® to support charging to a mobile device

USB Power Delivery up to

100 W

Number of displays supported

1

Host interface

USB Type-C

Full duplex

No

Flow control support

No

Auto MDI/MDI-X

No

Data transfer rate

5000 Mbit/s

Input current

3 A

Output voltage

20 V

Output current

3 A

Input voltage

20 V

Plug and Play

Yes

Product colour

White

Full duplex

No

Flow control support

No

Compatible memory cards

MicroSD (TransFlash), SD

Card reader slot

1

Plug and Play

Yes

Data transfer rate

5000 Mbit/s

USB Power Delivery

Yes

Compatible products

• Available DisplayPort™ Alt Mode over USB-C® port for video output • Available USB™ Power Delivery over USB-C® to support charging to a mobile device

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Minimum system requirements

• Available DisplayPort™ Alt Mode over USB-C® port for video output • Available USB™ Power Delivery over USB-C® to support charging to a mobile device

Other operating systems supported

ChromeOS

Compatible memory cards

MicroSD (TransFlash), SD

Weight

51 g

Width

39 mm

Depth

11 mm

Height

122 mm

Package width

189.9 mm

Package depth

85 mm

Package height

17.5 mm

Package weight

97.5 g

Package type

Box

Package width

189.9 mm

Package depth

85 mm

Package height

17.5 mm

Package weight

97.5 g

Quantity per pack

1 pc(s)

Packaging content

• 1 - JCD373E Eco-Friendly USB-C® Multi-Port Hub with Power Delivery • 1 - Quick Installation Guide (QIG)

Package type

Box

Product colour

White

Cable length

0.17 m

Operating temperature (T-T)

-1 - 41 °C

Storage temperature (T-T)

-17 - 68 °C

Operating relative humidity (H-H)

0 - 85%

Storage relative humidity (H-H)

0 - 85%

Packaging content

• 1 - JCD373E Eco-Friendly USB-C® Multi-Port Hub with Power Delivery • 1 - Quick Installation Guide (QIG)
