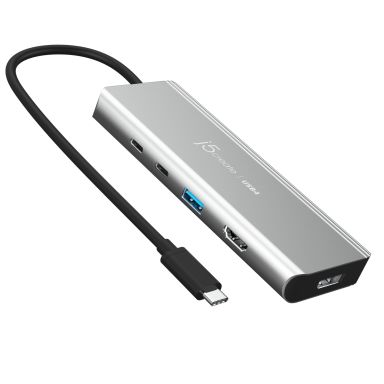

j5create JCD401 USB4™ Dual 4K Multi-Port Hub, Silver

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 2.0 ports quantity

0

HDMI ports quantity

1

DisplayPorts quantity

1

Microphone in

No

Headphone outputs

0

Connectivity technology

Wired

USB Power Delivery (USB PD)

Yes

USB Power Delivery revision

3.0

USB Power Delivery up to

85 W

USB Type-C DisplayPort Alternate Mode

Yes

USB4 ports quantity

1

Ethernet LAN

No

Number of displays supported

2

Country of origin

Taiwan

Product colour

Silver

Card reader integrated

No

Compatibility

Thunderbolt™ 4 computers Thunderbolt™ 3 computers USB4® computers

Plug and Play

Yes

Data transfer rate

10 Gbit/s

HD type

4K Ultra HD

Housing material

Aluminium

Maximum refresh rate

60 Hz

Hub interfaces

DisplayPort, HDMI, Mini DisplayPort, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, mini DisplayPort

Product colour

Silver

Compatibility

Thunderbolt™ 4 computers Thunderbolt™ 3 computers USB4® computers

Plug and Play

Yes

Data transfer rate

10 Gbit/s

Master (outer) case GTIN (EAN/UPC)

24712795086342

Warranty period

2 year(s)

Special features

Intel® USB4® controller ensures industry-leading quality and reliability, Up to two 4K displays with flexible monitor connections, Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter

Products per master (outer) case

18 pc(s)

Master (outer) case width

226 mm

Master (outer) case gross weight

4.1 kg

Master (outer) case length

445 mm

Master (outer) case height

190 mm

Products per shipping (inner) case

6 pc(s)

Card reader integrated

No

Power source type

USB

Power consumption (typical)

1.25 W

Output voltage

20 V

Output current

0.25 A

Power connector

USB Type-C

USB cable length

0.2 m

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-17 - 68 °C

Operating relative humidity (H-H)

0 - 85%

Storage relative humidity (H-H)

0 - 85%

Weight

109 g

Width

51 mm

Depth

200 mm

Height

135 mm

Package weight

177 g

Package width

193 mm

Package depth

125 mm

Package height

22.5 mm

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Country of origin

Taiwan

Product colour

Silver

Quantity per pack

1 pc(s)

Package weight

177 g

Package width

193 mm

Package depth

125 mm

Package height

22.5 mm

Quick start guide

Yes

Manual

Yes

Cables included

USB Type-C

Quantity per pack

1 pc(s)

Shipping (inner) case width

16.5 cm

Shipping (inner) case length

21.2 cm

Shipping (inner) case height

13.7 cm

Shipping (inner) case net weight

1.2 kg

Products per master (outer) case

18 pc(s)

Master (outer) case width

226 mm

Master (outer) case gross weight

4.1 kg

Master (outer) case length

445 mm

Master (outer) case height

190 mm

Products per shipping (inner) case

6 pc(s)

Export Control Classification Number (ECCN)

EAR99

Special features

Intel® USB4® controller ensures industry-leading quality and reliability, Up to two 4K displays with flexible monitor connections, Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter
