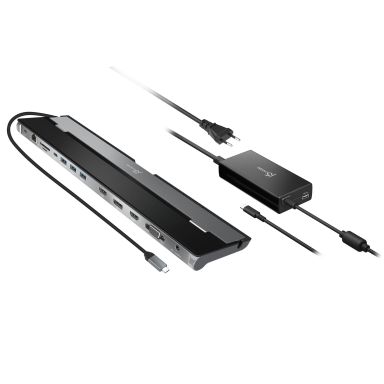

J5create Jcd543p Usb Triple Display Docking Station 100w Pd Adapter
0 Reviews
| Add your review
In Stock
|
£106.70
£128.04 (Inc. VAT)
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | No |
| Headphone outputs | 1 |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10-100-1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 1080 pixels |
| Maximum analog resolution | 1920 x 1080 pixels |
| Number of displays supported | 3 |
| Taiwan | |
| Product colour | Black- Silver |
| Card reader integrated | Yes |
| Compatibility | Macbook™ Pro 2016 & Newer Surface Pro™ 7 Surface Go™ Surfacebook™ 2 Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0 |
| Data transfer rate | 5 Gbit/s |
| Compatible memory cards | MicroSD (TransFlash)- SD |
| HD type | 4K Ultra HD |
| Housing material | Aluminium |
| Display modes | Extended- Mirror |
| Colour name | Silver and Black |
| Technical details | |
| Product colour | Black- Silver |
| Compatibility | Macbook™ Pro 2016 & Newer Surface Pro™ 7 Surface Go™ Surfacebook™ 2 Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0 |
| Data transfer rate | 5 Gbit/s |
| I/O ports | 2 - USB™ 3.0 Type-A 1 - USB™ 3.0 Type-A fast charge 1 - USB-C™ 3.1 Gen 1 1 - USB-C™ Power Delivery 3.0 2 - 4K HDMI™ 1 - DisplayPort™ 1 - VGA 1 - SD™ & microSD™ memory card reader/writer 1 - RJ45 Gigabit Ethernet 1 - 3.5 mm combo audio jack |
| Warranty period | 2 year(s) |
| Special features | Simultaneous DisplayPort™- HDMI™ and VGA Output- 13 ports in one sleek design for all your needs |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case width | 150 mm |
| Master (outer) case gross weight | 2 kg |
| Master (outer) case length | 398 mm |
| Master (outer) case height | 123 mm |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)- SD |
| Power | |
| Power source type | DC- USB |
| Input current | 0.8 A |
| AC input voltage | 110 - 220 V |
| Power consumption (typical) | 4.5 W |
| Output voltage | 20 V |
| Output current | 4.75 A |
| Power connector | USB Type-C |
| Power supply | 100 W |
| USB cable length | 0.45 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 48 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Weight | 300 g |
| Width | 82.5 mm |
| Depth | 350 mm |
| Height | 23.4 mm |
| Package weight | 889.5 g |
| Package width | 89.3 mm |
| Package depth | 358 mm |
| Package height | 63.5 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Taiwan | |
| Product colour | Black- Silver |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 889.5 g |
| Package width | 89.3 mm |
| Package depth | 358 mm |
| Package height | 63.5 mm |
| Packaging content | |
| Quick start guide | Yes |
| Packaging content | 1 - JCD543P USB-C™ Triple Display Docking Station 1 - JUP2290 100W USB-C™ Super Charger 1 - Quick Installation Guide |
| Cables included | USB Type-C |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case width | 150 mm |
| Master (outer) case gross weight | 2 kg |
| Master (outer) case length | 398 mm |
| Master (outer) case height | 123 mm |
| Export Control Classification Number (ECCN) | EAR99 |
| Other features | |
| I/O ports | 2 - USB™ 3.0 Type-A 1 - USB™ 3.0 Type-A fast charge 1 - USB-C™ 3.1 Gen 1 1 - USB-C™ Power Delivery 3.0 2 - 4K HDMI™ 1 - DisplayPort™ 1 - VGA 1 - SD™ & microSD™ memory card reader/writer 1 - RJ45 Gigabit Ethernet 1 - 3.5 mm combo audio jack |
| Special features | Simultaneous DisplayPort™- HDMI™ and VGA Output- 13 ports in one sleek design for all your needs |
