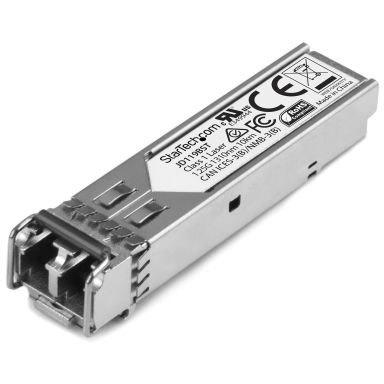

StarTech.com HP JD119B Compatible SFP Transceiver Module - 1000BASE-LX
In Stock
|
Call For Price (0808 189 1246)
Performance
SFP transceiver type
Fiber optic
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Networking standards
IEEE 802.3z
Maximum transfer distance
10000 m
Wavelength
1310 nm
Duplex system
Full
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
Yes
SFP transceiver standard
LX
Country of origin
China
Product colour
Silver
Housing material
Aluminium
Hot-swap
Yes
Mean time between failures (MTBF)
3092408 h
Harmonized System (HS) code
85369010
Features
Product colour
Silver
Housing material
Aluminium
Hot-swap
Yes
Mean time between failures (MTBF)
3092408 h
Country of origin
China
Certification
CE, FCC, UR
Power
Power consumption (typical)
1 W
Certificates
Certification
CE, FCC, UR
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Networking standards
IEEE 802.3z
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Weight & dimensions
Width
13.7 mm
Depth
56.6 mm
Height
12.5 mm
Weight
16 g
Package depth
93 mm
Package width
118 mm
Package height
33 mm
Package weight
46 g
Packaging content
Quantity per pack
1 pc(s)
Technical details
Package width
118 mm
Package height
33 mm
Hot-swap
Yes
Maximum transfer distance
10000 m
Wavelength
1310 nm
Duplex system
Full
Compliance certificates
RoHS
Packaging data
Package depth
93 mm
Package width
118 mm
Package height
33 mm
Package weight
46 g
Logistics data
Quantity per pack
1 pc(s)
Country of origin
China
Master (outer) case width
254 mm
Master (outer) case length
305 mm
Master (outer) case height
201 mm
Products per master (outer) case
36 pc(s)
Harmonized System (HS) code
85369010
StarTech.com HP JD119B Compatible SFP Transceiver Module - 1000BASE-LX
| Length | 9.3 cm |
| Width | 11.8 cm |
| Height | 3.3 cm |
| Weight | 0.05 kgs |
