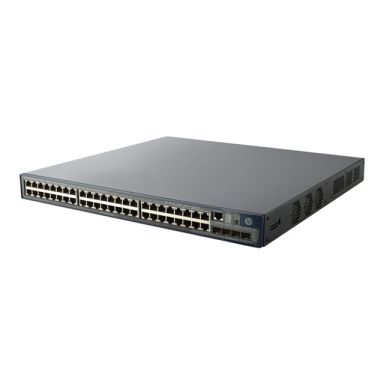

HPE 5120-48G-PoE+ EI Switch with 2 Interface slots
Out of Stock
|
Call For Price (0808 189 1246)
Network
IGMP snooping
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex
Yes
Routing entries
32
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
10G support
Yes
Performance
Packet buffer memory
4 MB
Memory type
SDRAM
Internal memory
128 MB
Flash memory
16 MB
Power
Power connector
DC-in jack
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
920 W
Technical details
Product colour
Grey
Rack mounting
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Power connector
DC-in jack
Data transmission
Packet buffer memory
4 MB
Supported data transfer rates
10/100/1000 Mbps
Switching capacity
192 Gbit/s
Maximum data transfer rate
1 Gbit/s
Security
IGMP snooping
Yes
Certificates
Safety
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Certification
FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Memory
Packet buffer memory
4 MB
Memory type
SDRAM
Internal memory
128 MB
Flash memory
16 MB
Design
Safety
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Product colour
Grey
Certification
FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Rack mounting
Yes
Indication
Power LED
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
440 mm
Depth
420 mm
Height
43 mm
Weight
7.5 kg
Packaging data
User guide
Yes
Other features
Latency
3.2 µs
Power LED
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Packaging content
User guide
Yes
HPE 5120-48G-PoE+ EI Switch with 2 Interface slots
| Length | 42.00 cm |
| Width | 44.00 cm |
| Height | 4.30 cm |
| Weight | 7.50 kgs |
