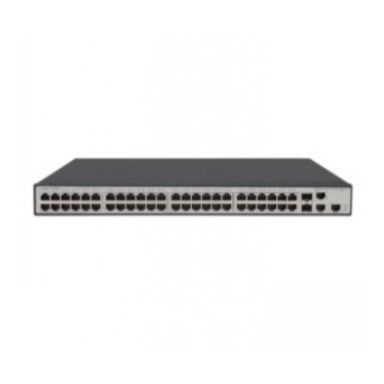

HPE OfficeConnect 1950 48G 2SFP+ 2XGT Managed L3 Gigabit Ethernet (10/100/1000) 1U
In Stock
|
$749.87
$899.84 (Inc. VAT)
Specifications
Ports & interfaces
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity
2
Console port
RJ-45
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Networking standards
IEEE 802.3IEEE 802.3abIEEE 802.3u
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Performance
Packet buffer memory
3 MB
Memory type
SDRAM
Internal memory
1024 MB
Flash memory
128 MB
Technical details
Virtual stacking (units)
4
Form factor
1U
Product colour
Gray
Rack mounting
Yes
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Data transmission
Throughput
130.9 Mpps
Latency (10-100 Mbps)
5 µs
Latency (1 Gbps)
5 µs
Latency (10 Gbps)
1.5 µs
Packet buffer memory
3 MB
MAC address table
16384 entries
Switching capacity
176 Gbit/s
Jumbo frames support
Yes
Security
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client
Memory
Packet buffer memory
3 MB
Memory type
SDRAM
Internal memory
1024 MB
Flash memory
128 MB
Design
Form factor
1U
Product colour
Gray
Rack mounting
Yes
Power
Power consumption (max)
54 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
440 mm
Depth
360 mm
Height
44 mm
Weight
5 kg
HPE OfficeConnect 1950 48G 2SFP+ 2XGT Managed L3 Gigabit Ethernet (10/100/1000) 1U
| Length | 36.00 cm |
| Width | 44.00 cm |
| Height | 4.40 cm |
| Weight | 5.000000 kgs |
