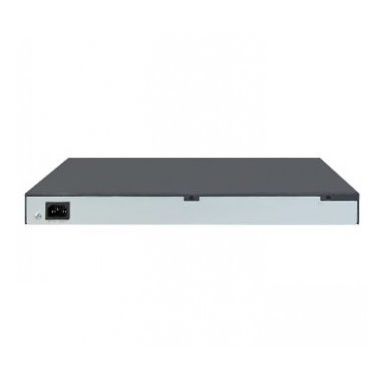

HPE 1420-24G-PoE+ (124W) Unmanaged L2 Gigabit Ethernet 1U Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Ports & interfaces
Copper ethernet cabling technology
1000BASE-T100BASE-TX10BASE-T
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
Performance
Packet buffer memory
0.5 MB
Flash memory
1 MB
Power
Energy Star certified
Yes
Power consumption (max)
160 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Technical details
Form factor
1U
Product colour
Gray
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Switch layer
L2
Network
Copper ethernet cabling technology
1000BASE-T100BASE-TX10BASE-T
Networking standards
IEEE 802.1pIEEE 802.3IEEE 802.3abIEEE 802.3azIEEE 802.3u
Flow control support
Yes
Auto MDI/MDI-X
Yes
Data transmission
Throughput
35.7 Mpps
Latency (10-100 Mbps)
8 µs
Latency (1 Gbps)
16 µs
Packet buffer memory
0.5 MB
MAC address table
8192 entries
Switching capacity
48 Gbit/s
Certificates
Energy Star certified
Yes
Memory
Packet buffer memory
0.5 MB
Flash memory
1 MB
Design
Form factor
1U
Product colour
Gray
LED indicators
Yes
Energy Star certified
Yes
Indication
LED indicators
Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
124 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
-15.2 - 5000 m
Weight & dimensions
Width
440 mm
Depth
238 mm
Height
44 mm
Weight
3.3 kg
HPE 1420-24G-PoE+ (124W) Unmanaged L2 Gigabit Ethernet 1U Power over Ethernet (PoE)
| Length | 21.0000 cm |
| Width | 13.0000 cm |
| Height | 3.5000 cm |
| Weight | 3.300000 kgs |
