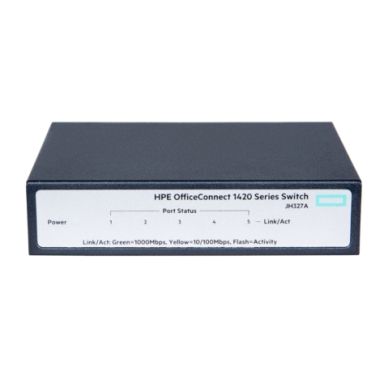

HPE OfficeConnect 1420 5G Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Ports & interfaces
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Performance
Packet buffer memory
1 MB
Technical details
Form factor
1U
Product colour
Grey
Rack mounting
Yes
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Switch layer
L2
Network
Auto-sensing
Yes
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Networking standards
IEEE 802.3IEEE 802.3abIEEE 802.3u
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Data transmission
Throughput
7.4 Mpps
Latency (10-100 Mbps)
3 µs
Latency (1 Gbps)
2.6 µs
Packet buffer memory
1 MB
MAC address table
2048 entries
Switching capacity
10 Gbit/s
Jumbo frames support
Yes
Memory
Packet buffer memory
1 MB
Design
Form factor
1U
Product colour
Grey
Rack mounting
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
15 - 95%
Weight & dimensions
Width
114.8 mm
Depth
80.8 mm
Height
26.9 mm
Weight
300 g
HPE OfficeConnect 1420 5G Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U
| Length | 9.1000 cm |
| Width | 7.1000 cm |
| Height | 3.1000 cm |
| Weight | 1.000000 kgs |
