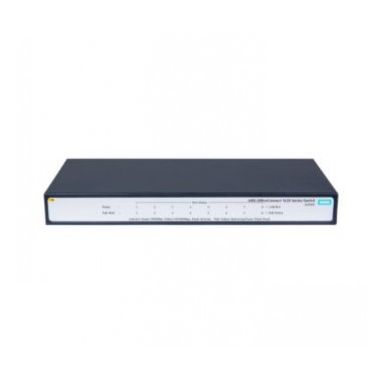

HPE OfficeConnect 1420 8G PoE+ (64W) Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Ports & interfaces
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Performance
Packet buffer memory
1.5 MB
Technical details
Form factor
1U
Product colour
Grey
Rack mounting
Yes
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Switch layer
L2
Network
Auto-sensing
Yes
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Networking standards
IEEE 802.3IEEE 802.3abIEEE 802.3u
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Data transmission
Throughput
11.8 Mpps
Latency (10-100 Mbps)
3 µs
Latency (1 Gbps)
2.6 µs
Packet buffer memory
1.5 MB
MAC address table
4096 entries
Switching capacity
16 Gbit/s
Jumbo frames support
Yes
Memory
Packet buffer memory
1.5 MB
Design
Form factor
1U
Product colour
Grey
Rack mounting
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
80 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
64 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
15 - 95%
Weight & dimensions
Width
234.7 mm
Depth
104.9 mm
Height
26.9 mm
Weight
700 g
HPE OfficeConnect 1420 8G PoE+ (64W) Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Power over Ethernet (PoE)
| Length | 12.3000 cm |
| Width | 11.0000 cm |
| Height | 2.6000 cm |
| Weight | 1.000000 kgs |
