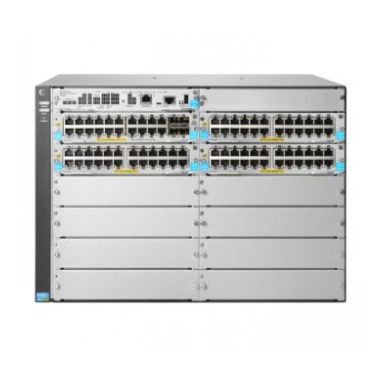

Aruba 5412R 92GT PoE+ and 4-port SFP+ (No PSU) v3 zl2 Switch (JL001A)
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Network
Device Type
Switch - 92 ports - managed
IGMP snooping
Yes
Auto-sensing
Yes
Networking standards
IEEE 802.3IEEE 802.3atIEEE 802.3abIEEE 802.3u
Full duplex
Yes
VLAN support
Yes
Routing entries
10000
IP routing
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Performance
Processor frequency
1200 MHz
Noise level
49 dB
Memory type
DDR3-SDRAM
Internal memory
4096 MB
Flash memory
16 MB
Built-in processor
Yes
Processor model
QorIQ P2020
Technical details
Form factor
7U
Product colour
Grey
Processor frequency
1200 MHz
Noise level
49 dB
Rack mounting
Yes
Built-in processor
Yes
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
92
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Compatible memory cards
SD
Data transmission
Throughput
1142.8 Mpps
Latency (1 Gbps)
2.8 µs
Latency (10 Gbps)
1.8 µs
MAC address table
64000 entries
Switching capacity
1920 Gbit/s
Jumbo frames support
Yes
Security
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP server
Memory
Memory type
DDR3-SDRAM
Internal memory
4096 MB
Flash memory
16 MB
Design
Form factor
7U
Product colour
Grey
Rack mounting
Yes
Power
Power supply included
No
AC input voltage
110 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
15 - 95%
Weight & dimensions
Width
444.5 mm
Depth
450.9 mm
Height
307.3 mm
Weight
20.5 kg
Aruba 5412R 92GT PoE+ and 4-port SFP+ (No PSU) v3 zl2 Switch (JL001A)
| Length | 45.0900 cm |
| Width | 44.4500 cm |
| Height | 30.7300 cm |
| Weight | 20.500000 kgs |
