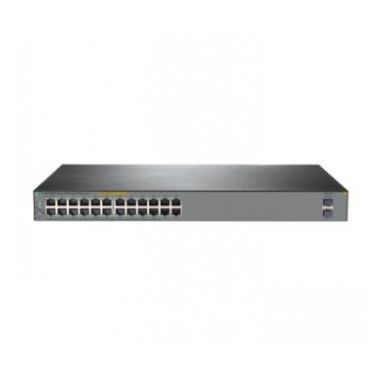

HPE OfficeConnect 1920S 24G 2SFP PoE+ 370W Managed L3 Gigabit Ethernet (10/100/1000) 1U PoE
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Ports & interfaces
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
2
Network
IGMP snooping
Yes
Auto-sensing
Yes
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Networking standards
IEEE 802.3IEEE 802.3uIEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Virtual LAN features
VLAN support
Yes
Performance
Packet buffer memory
1.5 MB
Processor frequency
400 MHz
Memory type
SDRAM
Internal memory
256 MB
Flash memory
64 MB
Built-in processor
Yes
Technical details
Form factor
1U
Product colour
Gray
Processor frequency
400 MHz
Rack mounting
Yes
Built-in processor
Yes
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Data transmission
Throughput
77.3 Mpps
Latency (10-100 Mbps)
7 µs
Latency (1 Gbps)
2 µs
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
52 Gbit/s
Jumbo frames support
Yes
Security
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client
Memory
Packet buffer memory
1.5 MB
Memory type
SDRAM
Internal memory
256 MB
Flash memory
64 MB
Design
Form factor
1U
Product colour
Gray
Rack mounting
Yes
Power
Power consumption (max)
435 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
34.2 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
370 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
15 - 95%
Weight & dimensions
Width
442.5 mm
Depth
246.1 mm
Height
43.9 mm
Weight
4.4 kg
HPE OfficeConnect 1920S 24G 2SFP PoE+ 370W Managed L3 Gigabit Ethernet (10/100/1000) 1U PoE
| Length | 22.0000 cm |
| Width | 18.5000 cm |
| Height | 5.0000 cm |
| Weight | 4.400000 kgs |
