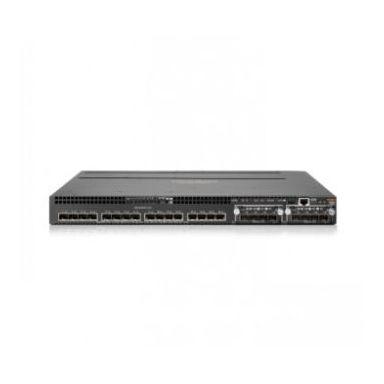

HPE Aruba 3810M 24SFP+250W Switch

Name: HPE Aruba 3810M 24SFP+250W Switch
Brand: HP
SKU: JL430A
Price: 6478.80 GBP
Availability: InStock

| Add your review

In Stock

Brand:	HP
SKU:	JL430A
GTIN:	5711783996811
Condition:	NEW
Product Type:	Networking

~~£5450.00~~ £5399.00

~~£6540.00~~ £6478.80 (Inc. VAT)

Order by 2:00 PM today and
get it next day (UK Mainland Orders)

Management features

Switch type

Managed

Web-based management

Yes

Quality of Service (QoS) support

Yes

Switch layer

Ports & interfaces

SFP+ module slots quantity

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Installed SFP modules quantity

Installed SFP+ modules quantity

Console port

RJ-45

Network

Auto-sensing

Yes

Networking standards

IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3by, IEEE 802.3x

Full duplex

Yes

VLAN support

Yes

Spanning tree protocol

Yes

Rate limiting

Yes

Link aggregation

Yes

IP routing

Yes

Auto MDI/MDI-X

Yes

10G support

Yes

Data transmission

Throughput

190.5 Mpps

Latency (1 Gbps)

Latency (10 Gbps)

Packet buffer memory

13.5 MB

MAC address table

64000 entries

Switching capacity

320 Gbit/s

Jumbo frames support

Yes

Security

Access Control List (ACL)

Yes

DHCP features

DHCP server

Design

Form factor

Product colour

Grey

Stackable

Yes

Rack mounting

Yes

Performance

Virtual stacking (units)

Processor frequency

1000 MHz

Memory type

DDR3-SDRAM

Internal memory

2048 MB

Built-in processor

Yes

Packet buffer memory

13.5 MB

Stackable

Yes

Harmonized System (HS) code

85176990

Power

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (typical)

250 W

Number of power supply units

Power source

Power over Ethernet (PoE)

Total Power over Ethernet (PoE) budget

1440 W

Power over Ethernet (PoE)

Yes

Operational conditions

Storage temperature (T-T)

Storage relative humidity (H-H)

15 - 90%

Operating temperature (T-T)

Operating relative humidity (H-H)

15 - 95%

Virtual LAN features

VLAN support

Yes

Weight & dimensions

Width

442.5 mm

Depth

431.3 mm

Height

43.9 mm

Weight

6.02 kg

Technical details

Virtual stacking (units)

Form factor

Product colour

Grey

Stackable

Yes

Processor frequency

1000 MHz

Rack mounting

Yes

Built-in processor

Yes

Memory

Packet buffer memory

13.5 MB

Memory type

DDR3-SDRAM

Internal memory

2048 MB

Logistics data

Harmonized System (HS) code

85176990

HPE Aruba 3810M 24SFP+250W Switch

Suitable for designed for enterprise, SMB, and branch office networks, HPE Aruba 3810M 24SFP+ UK is a high-performance Layer 3 managed switch featuring 24 fixed 10 Gigabit SFP+ ports with support for optical fiber connectivity, delivering low latency and wire-speed 40GbE line rate for high throughput.

Key Specifications of HPE JL430A UK:

24 10G SFP+ Ports
One Port Expansion Module Slot
320 Gb/s Switching Capacity
190.5 Mpps Forwarding Rate
1 GHz ARM Cortex A9 Dual-Core
250W Power Supply and Fan Tray
Rack-Mountable

Port Density:

This is a 24 SFP+ port switch that is provided with 24 10/100/1000 Ethernet ports, making it suitable for high-bandwidth applications. The ports are SFP+ for high-speed fiber optics-based connectivity.

This makes this managed network switch suitable for homes, businesses, small offices, remote locations, challenging environments, industrial use, outdoor Wi-Fi, and network switches for security cameras.

Switching Performance:

This HPE Aruba 3810M series switch is capable of supporting 160 Gbps Switching Fabric Bandwidth, switching capacity, and 95.2 Mpps forwarding rate. In addition, it also supports 10000 routing tables, and the Mac Address Table can support 64K entries. You can thus find this 10G SFP+ switch suitable for today's bandwidth-heavy applications.

High-Performance Layer 3 Switches:

This is a managed L3 Gigabit switch that comes with a Robust Layer 3 feature set, Flow Control, Full Duplex Capability, DHCP Support, Bootp Support, VLAN Support, Syslog Support, Diffserv Support, Sflow, Multiple Spanning Tree Protocol (MSTP) Support, Quality of Service (QoS), Jumbo Frames Support, LLDP Support, and Link Aggregation Control Protocol (LACP).

Remote Management:

It is a modular networking switch that supports multiple advanced remote management protocols, including SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, SSH-2, Xrmon, allowing you to use it as a backplane stacking switch or high-speed campus access switch.
