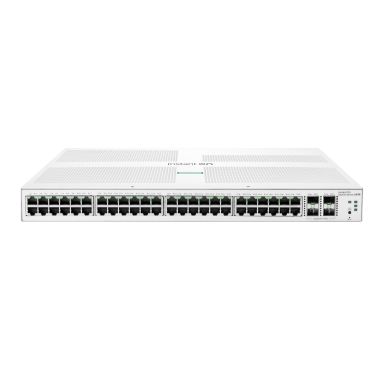

HPE Aruba Instant On 1930 Managed L2+ 48-port Gigabit Ethernet Switch with 4 SFP/SFP+ Ports

In StockIn Stock
Brand:HPE
SKU:JL685A
GTIN:190017356082
Condition:NEW
Product Type:Networking
£299.00 £251.00
£358.80 £301.20 (Inc. VAT)
clock
Order by 2:00 PM today and
get it next day (UK Mainland Orders)
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
IGMP snooping
Yes
Auto-sensing
Yes
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
256
Link aggregation
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
Yes
Virtual LAN features
VLAN support
Yes
Number of VLANs
256
Data transmission
Number of VLANs
256
Throughput
130.95 Mpps
Latency (10-100 Mbps)
4.5 µs
Latency (1 Gbps)
2.2 µs
Latency (10 Gbps)
1.2 µs
Packet buffer memory
1.5 MB
MAC address table
16000 entries
Switching capacity
176 Gbit/s
Performance
Packet buffer memory
1.5 MB
Stackable
No
Processor frequency
800 MHz
Memory type
SDRAM
Internal memory
512 MB
Flash memory
256 MB
Processor model
ARM Cortex-A9
Technical details
Form factor
1U
Product colour
White
Stackable
No
Processor frequency
800 MHz
Rack mounting
Yes
Management features
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2+
Security
SSH/SSL support
Yes
IGMP snooping
Yes
Memory
Packet buffer memory
1.5 MB
Memory type
SDRAM
Internal memory
512 MB
Flash memory
256 MB
Design
Form factor
1U
Product colour
White
Stackable
No
Rack mounting
Yes
Power
Power consumption (max)
36.9 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
15 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
15 - 95%
Weight & dimensions
Width
442.5 mm
Depth
282.4 mm
Height
43.9 mm
Weight
3.13 kg

HPE Aruba Instant On 1930 Managed L2+ 48-port Gigabit Ethernet Switch with 4 SFP/SFP+ Ports

Designed for today's bandwidth-intensive applications, the HPE Aruba Instant On 1930 UK is an affordable, easy-to-deploy, smart-managed, and fixed-configuration gigabit switch suitable for growing SMEs and large organizations.

Key Features of JL685A buy UK:

  • Ports: 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+

  • Layer 2+ Gigabit switches

  • 176 Gbps switching capacity with 130.95 Mpps maximum throughput

  • Rack mountable

Here is an in-depth description of this 48-port managed switch in the UK:

Port Configuration:

This is an advanced network solutions switch that is provided with four 48 x 10/100/1000 ports, allowing users to ensure wired multi-gigabit connectivity. In addition, there are an additional 4 10 G SFP+ ports that can help you establish high-speed fiber uplinks for bandwidth-intensive applications.

This enterprise-grade port density makes it a perfect network switch for homes, enterprise-level offices, industrial network needs, outdoor WiFi needs, and IP security cameras. In addition, a 10 Gigabit SFP+ uplink can help you provide multi-gigabit fiber optics connectivity for mission-critical applications.

Switching Performance:

This fully managed switch is capable of delivering 176 Gbps switching capacity with a 130.95 Mbps forwarding rate.

You can thus use this high-performing rack-mountable network switch suitable for various applications such as IP surveillance camera switching, VoIP phone system switching, UniFi Network Controller integration, centralized network management, secure network infrastructure, and scalable network switching.

Smart Managed Layer 2+ Gigabit Switch:

This is an L2+ managed switch that comes with advanced management features, including customizable features like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control. It is provided with Instant on Portal, Web browser, and SNMP Manager, allowing you to enjoy easy-to-use, out-of-the-box, plug-and-play deployment.

Integrated Security Features:

This HPE Aruba 1930 series switch is equipped with advanced security features, allowing network admins to protect networks from the entire spectrum of cybersecurity threats. Furthermore, support for energy-efficient Ethernet for lower power consumption makes it suitable for small and medium enterprises as well.

Length28.24 cm
Width44.25 cm
Height4.39 cm
Weight4.10 kgs
