Video

Video formats supported

H.264, MPEG, YUY2

Supported video modes

360p, 480p, 540p, 720p, 1080p, 1440p, 2160p

Resolution at capture speed

720x480@30fps, 1280x720@30fps, 1920x1080@30fps, 2560x1440@30fps, 3840x2160@30fps

Maximum frame rate

60 fps

Maximum video resolution

3840 x 2160 pixels

Megapixel (approx.)

8 MP

Still image

Maximum image resolution

3840 x 2160 pixels

Image formats supported

MJPEG

Auto focus

Yes

Image sensor

Sensor type

CMOS

Optical sensor size

25.4 / 2.5 mm (1 / 2.5")

Lens system

Digital zoom

Focus adjustment

Auto

Camera

Diagonal field of view

94°

Interface

USB 2.0

Built-in flash

Face tracking

Image stabilizer

Viewing angle, horizontal

87°

Plug and Play

Yes

Mounting type

Clip/Stand

Product colour

Black, Silver

Built-in microphone

Yes

Power

USB powered

Yes

Power consumption (typical)

5 W

Operating voltage

5 V

Performance

Camera HD type

Full HD

Diagonal field of view

94°

Maximum image resolution

3840 x 2160 pixels

Digital zoom

Face tracking

Focus adjustment

Auto

Viewing angle, horizontal

87°

Video formats supported

H.264, MPEG, YUY2

Supported video modes

360p, 480p, 540p, 720p, 1080p, 1440p, 2160p

Power consumption (typical)

5 W

Plug and Play

Yes

Operating voltage

5 V

Image formats supported

MJPEG

Firmware upgradeable

Yes

Auto focus

Yes

Resolution at capture speed

720x480@30fps, 1280x720@30fps, 1920x1080@30fps, 2560x1440@30fps, 3840x2160@30fps

Maximum frame rate

60 fps

Maximum video resolution

3840 x 2160 pixels

Megapixel (approx.)

8 MP

Privacy type

Privacy cover

Privacy camera

Yes

Operating current

0.5 A

Windows operating systems supported

Windows 10, Windows 8.1

Mac operating systems supported

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 90%

Design

Housing material

Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Number of microphones

Sensor type

CMOS

Interface

USB 2.0

Built-in flash

Image stabilizer

USB powered

Yes

Optical sensor size

25.4 / 2.5 mm (1 / 2.5")

Mounting type

Clip/Stand

LED indicators

Power, Status

Product colour

Black, Silver

Cable length

2 m

Built-in microphone

Yes

Lens material

Glass

Country of origin

Taiwan

Software

Windows operating systems supported

Windows 10, Windows 8.1

Mac operating systems supported

Yes

Other operating systems supported

ChromeOS

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 90%

Weight & dimensions

Width

106 mm

Depth

63.6 mm

Height

64.6 mm

Weight

215 g

Packaging data

Quantity

Package width

155 mm

Package type

Box

Package height

70 mm

Package depth

95 mm

Package weight

258.5 g

Quick installation guide

Yes

Packaging content

Quick installation guide

Yes

Box contents

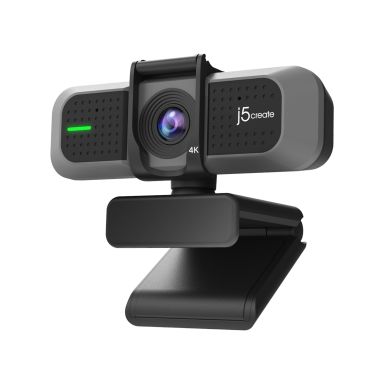

1 x JVU430 USB 4K Ultra HD Webcam, 1 x Quick Installation Guide

Technical details

Housing material

Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Quantity

Package type

Box

Output power

5 W

LED indicators

Power, Status

Firmware upgradeable

Yes

Cable length

2 m

Shipping (inner) case net weight

860 g

Commodity Classification Automated Tracking System (CCATS)

8525.50.0000

Warranty period

2 year(s)

System requirements

Minimum system requirements

-AvailableUSB-C®or USBType-A port -Windows® 10 -macOS with UVC support -Chrome OS with UVC support -Operating systemswith standardUVC1.1/1.5&UAC 1.0support

Logistics data

Master (outer) case width

230 mm

Master (outer) case length

435 mm

Master (outer) case height

190 mm

Master (outer) case gross weight

3.84 kg

Master (outer) case GTIN (EAN/UPC)

24712795086069

Products per master (outer) case

12 pc(s)

Country of origin

Taiwan

Shipping (inner) case width

10.3 cm

Shipping (inner) case length

21.8 cm

Shipping (inner) case height

16.5 cm

Products per shipping (inner) case

3 pc(s)

Shipping (inner) case net weight

860 g

Export Control Classification Number (ECCN)

EAR99

Minimum order quantity

12 pc(s)

Commodity Classification Automated Tracking System (CCATS)

8525.50.0000

Other features

Country of origin

Taiwan

USB powered

Yes

Output power

5 W

Minimum system requirements

-AvailableUSB-C®or USBType-A port -Windows® 10 -macOS with UVC support -Chrome OS with UVC support -Operating systemswith standardUVC1.1/1.5&UAC 1.0support
