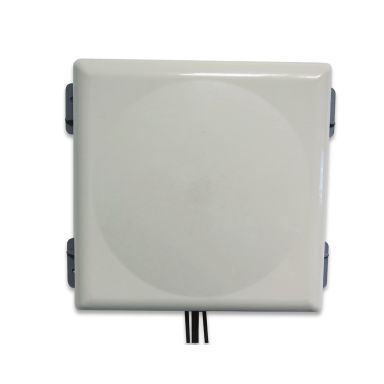

Aruba AP-ANT-48 Outdoor 4x4 MIMO - Antenne
In Stock
|
£127.36
£152.83 (Inc. VAT)
get it next day (UK Mainland Orders)
Performance
Antenna gain level (max)
8.5 dBi
Frequency band
2.4-2.5/4.9-6.0 GHz
Vertical beam width (5 GHz)
56°
Vertical beam width (2.4 GHz)
70°
Impedance
50 Ω
Horizontal beam width (5 GHz)
56°
Horizontal beam width (2.4 GHz)
70°
Antenna gain (5 GHz)
8.5 dBi
Antenna gain (2.4 GHz)
8.5 dBi
Features
Housing material
Aluminium, Plastic
Connector gender
Male
Antenna gain level (max)
8.5 dBi
Frequency band
2.4-2.5/4.9-6.0 GHz
Antenna type
Sector antenna
Voltage Standing Wave Ratio (VSWR)
2:01
Vertical beam width (5 GHz)
56°
Vertical beam width (2.4 GHz)
70°
Mounting
Wall
Impedance
50 Ω
Horizontal beam width (5 GHz)
56°
Horizontal beam width (2.4 GHz)
70°
Cable length
0.3 m
Antenna gain (5 GHz)
8.5 dBi
Antenna gain (2.4 GHz)
8.5 dBi
Antenna connector type
RP-SMA
Power
Power consumption (max)
6 W
Technical details
Antenna gain level (max)
8.5 dBi
Frequency band
2.4-2.5/4.9-6.0 GHz
Antenna type
Sector antenna
Voltage Standing Wave Ratio (VSWR)
2:01
Vertical beam width (5 GHz)
56°
Vertical beam width (2.4 GHz)
70°
Mounting
Wall
Impedance
50 Ω
Horizontal beam width (5 GHz)
56°
Horizontal beam width (2.4 GHz)
70°
Cable length
0.3 m
Antenna gain (5 GHz)
8.5 dBi
Antenna gain (2.4 GHz)
8.5 dBi
Antenna connector type
RP-SMA
Harmonized System (HS) code
85177100
Operational conditions
Operating temperature (T-T)
-45 - 65 °C
Weight & dimensions
Weight
700 g
Width
190 mm
Depth
190 mm
Height
44 mm
Logistics data
Harmonized System (HS) code
85177100
Aruba AP-ANT-48 Outdoor 4x4 MIMO - Antenne
| Length | 19 cm |
| Width | 19 cm |
| Height | 4.4 cm |
| Weight | 0.83 kgs |
