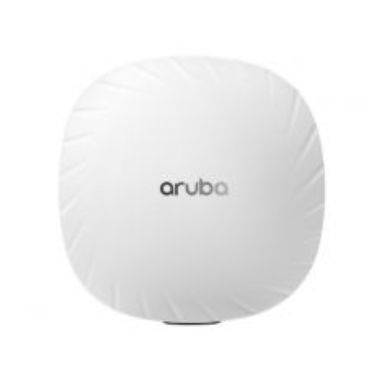

HPE Aruba AP-535 (US) - Campus Central Managed - wireless access point - ZigBee, Bluetooth 5.0, 802.11ax - ZigBee, Bluetooth, Wi-Fi - 2.4 GHz, 5 GHz
In Stock
|
Call For Price
(0808 189 1246)
Data transmission
Ethernet LAN data rates
100100025005000 Mbit/s
Maximum data transfer rate
3550 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Auto MDI/MDI-X
Yes
Spread spectrum method
DSSSOFDM
Ethernet LAN data rates
100100025005000 Mbit/s
Maximum data transfer rate
3550 Mbit/s
MIMO
Yes
Network
Spread spectrum method
DSSSOFDM
Security
Cable lock slot
Yes
Security algorithms
WMMWPAWPA2
Features
2.4 GHz
Yes
5 GHz
Yes
Auto MDI/MDI-X
Yes
Spread spectrum method
DSSSOFDM
Ethernet LAN data rates
100100025005000 Mbit/s
Maximum data transfer rate
3550 Mbit/s
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
1148 Mbit/s
Maximum data transfer rate (5 GHz)
2402 Mbit/s
Ports & interfaces
USB connector type
USB Type-A
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
2
Power
Power consumption (max)
23.3 W
Power over Ethernet (PoE)
Yes
Design
Placement
Ceiling Wall
Product colour
White
Cable lock slot
Yes
Cable lock slot type
Kensington
Antenna
Antenna type
Internal
Antennas quantity
4
Antenna gain level (max)
5.4 dBi
Antenna direction type
Omni-directional
Antenna features
Integrated antenna
Operational conditions
Operating relative humidity (H-H)
5 - 93%
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 93%
Weight & dimensions
Width
9.45" (240 mm)
Depth
9.45" (240 mm)
Weight
2.8 lbs (1.27 kg)
Height
2.24" (57 mm)
HPE Aruba AP-535 (US) - Campus Central Managed - wireless access point - ZigBee, Bluetooth 5.0, 802.11ax - ZigBee, Bluetooth, Wi-Fi - 2.4 GHz, 5 GHz
| Length | 24.00 cm |
| Width | 24.00 cm |
| Height | 5.70 cm |
| Weight | 1.270000 kgs |
