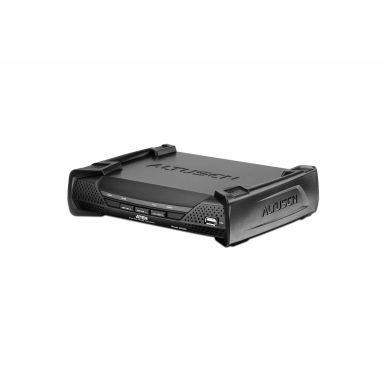

Aten Ka7240s-Ax-E Kvm Switch
In Stock
|
$981.91
$1178.29 (Inc. VAT)
Technical details
Product colour
Black
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Sustainability certificates
RoHS
Performance
Maximum cable length
200 m
Firmware upgradeable
Yes
HD type
Full HD+
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Video
HD type
Full HD+
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone- 3.5mm mic- USB A- VGA (D-Sub)
Number of microphone inputs
2
Serial ports quantity
1
Serial port type
DE-9 (DB-9)
Number of computers controlled
1
Keyboard port type
USB- PS/2
Mouse port type
USB- PS/2
Video port type
VGA
PS/2 ports quantity
2
VGA (D-Sub) ports quantity
2
Headphone outputs
2
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Design
Maximum cable length
200 m
Product colour
Black
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Housing material
Metal
Display
Built-in display
No
Power
Power source
DC
DC input voltage
5.3 V
Power consumption (typical)
10.12 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
171.5 mm
Depth
227.1 mm
Height
54.8 mm
Weight
1.26 kg
Packaging content
Cables included
KVM
Manual
Yes
AC adapter included
Yes
Other features
Push button
Yes
Hot keys
Yes
Aten Ka7240s-Ax-E Kvm Switch
| Length | 22.71 cm |
| Width | 17.15 cm |
| Height | 5.48 cm |
| Weight | 1.260000 kgs |
