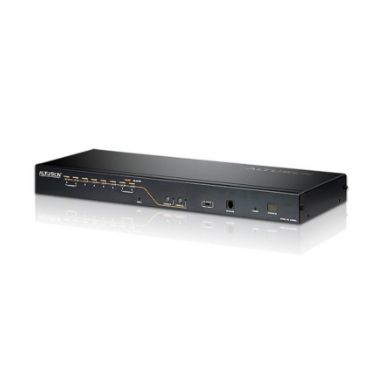

Aten KH2508A KVM switch Black
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Product colour
Black
Rack mounting
Yes
Scan interval
1-255 s
Push button
Yes
On Screen Display (OSD)
Yes
Number of users
128 user(s)
LED indicators
Yes
Hot keys
Yes
Video
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Ports & interfaces
Console USB ports quantity
4
Console ports
PS/2- USB A- VGA (D-Sub)
USB connector type
USB Type-A
Number of computers controlled
8
Keyboard port type
USB- PS/2
Mouse port type
USB- PS/2
Video port type
VGA
PS/2 ports quantity
4
VGA (D-Sub) ports quantity
2
Ethernet LAN (RJ-45) ports
8
RJ-11 ports quantity
1
AC-in ports quantity
1
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
8
Performance
Daisy chain
Yes
Firmware upgradeable
Yes
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Scan interval
1-255 s
Number of users
128 user(s)
Design
Display switch button
Yes
Product colour
Black
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Housing material
Metal
Display
Built-in display
No
On Screen Display (OSD)
Yes
Power
Input current
1 A
Power source
AC
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
9.3 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
163.6 mm
Depth
437.2 mm
Height
44 mm
Weight
2.81 kg
Packaging content
Rack mount kit
Yes
Cables included
AC
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
