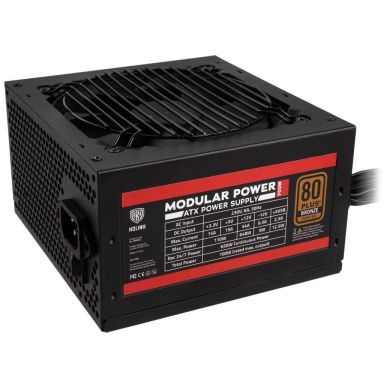

Kolink KL-700MV2 power supply unit 650 W 20+4 pin ATX ATX Black
In Stock
|
Call For Price
(0808 189 1246)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Bronze
Purpose
PC
ATX version
2.31
Safety
ErP 2013 Lot 6, ErP 2014 Lot, EU 617/2013
Mean time between failures (MTBF)
100000 h
Certification
CB
Design
80 PLUS certification
80 PLUS Bronze
Safety
ErP 2013 Lot 6, ErP 2014 Lot, EU 617/2013
Certification
CB
Product colour
Black
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Power
Total power
650 W
Peak power
700 W
AC input voltage
220 - 240 V
AC input frequency
50 - 60 Hz
Input current
6 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
648 W
Combined power (+5V)
110 W
Combined power (-12V)
3 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
15 A
Max output current (+12V)
54 A
Max output current (+5V)
15 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over power, Over voltage, Under voltage, Over current, Short circuit
Hold time
16 ms
Efficiency
87%
Ports & interfaces
Motherboard power cable length
50 cm
SATA power cable length
500,600,700 mm
Peripheral (Molex) power cable length
500,600 mm
PCI Express power cable length
60 cm
CPU power cable length
60 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
6
Peripheral (Molex) power connectors (4-pin)
2
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Yes
PCI Express connector
Yes
ATX power connector (20+4 pin)
Yes
Cabling type
Semi-Modular
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
150 mm
Depth
160 mm
Height
86 mm
Weight
1.92 kg
Packaging data
Package depth
196 mm
Package width
233 mm
Package height
95 mm
Package type
Box
Package weight
2.02 kg
Technical details
Sustainability certificates
CE, RoHS
Compliance certificates
CE, RoHS
Certificates
80 PLUS certification
80 PLUS Bronze
Safety
ErP 2013 Lot 6, ErP 2014 Lot, EU 617/2013
Certification
CB
