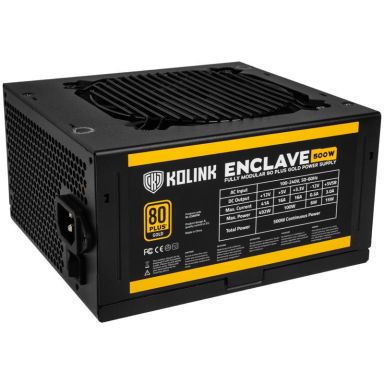

Kolink KL-G500FM power supply unit 500 W 20+4 pin ATX ATX Black
In Stock
|
$69.45
$83.34 (Inc. VAT)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Purpose
PC
ATX version
2.31
Safety
ErP 2013 Lot 6, ErP 2014 Lot, EU 617/2013
Mean time between failures (MTBF)
100000 h
Certification
CB
Design
80 PLUS certification
80 PLUS Gold
Safety
ErP 2013 Lot 6, ErP 2014 Lot, EU 617/2013
Certification
CB
Product colour
Black
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Power
Total power
500 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
7 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
100 W
Combined power (+12V)
492 W
Combined power (+5V)
100 W
Combined power (-12V)
6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
16 A
Max output current (+12V)
41 A
Max output current (+5V)
16 A
Max output current (-12V)
0.5 A
Max output current (+5Vsb)
3 A
Power protection features
Over current, Over power, Over voltage, Overload, Short circuit, Under voltage
Hold time
16 ms
Efficiency
90%
Ports & interfaces
Motherboard power cable length
50 cm
SATA power cable length
450,570,690 mm
Peripheral (Molex) power cable length
570,690 mm
PCI Express power cable length
60 cm
CPU power cable length
65 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
5
Peripheral (Molex) power connectors (4-pin)
4
PCI Express power connectors (6-pin)
2
CPU power connector (4+4 pin)
Yes
PCI Express connector
Yes
ATX power connector (20+4 pin)
Yes
Cabling type
Fully-Modular
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Weight & dimensions
Width
150 mm
Depth
160 mm
Height
86 mm
Weight
2 kg
Packaging data
Package depth
249 mm
Package width
299 mm
Package height
112 mm
Package type
Box
Package weight
2.51 kg
Technical details
Sustainability certificates
CE, RoHS
Compliance certificates
CE, RoHS
Certificates
80 PLUS certification
80 PLUS Gold
Safety
ErP 2013 Lot 6, ErP 2014 Lot, EU 617/2013
Certification
CB
Kolink KL-G500FM power supply unit 500 W 20+4 pin ATX ATX Black
