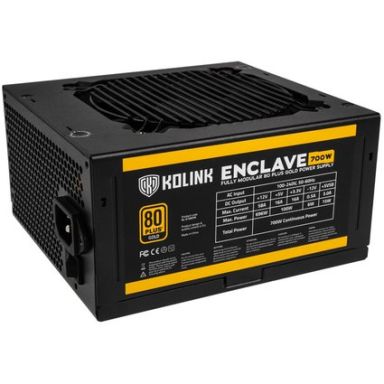

Kolink Enclave power supply unit 700 W 20+4 pin ATX ATX Black
In Stock
|
Call For Price
(0808 189 1246)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Design
80 PLUS certification
80 PLUS Gold
Certification
CB, CE, RoHS
Product colour
Black
Fan diameter
12 cm
Number of fans
1 fan(s)
Power
Total power
700 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
6 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
100 W
Combined power (+12V)
696 W
Combined power (+5V)
100 W
Combined power (-12V)
6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
16 A
Max output current (+12V)
58 A
Max output current (+5V)
16 A
Max output current (-12V)
0.5 A
Max output current (+5Vsb)
3 A
Power protection features
Over voltage, Overload, Short circuit, Under voltage
Efficiency
90%
Ports & interfaces
Motherboard power cable length
50 cm
CPU power cable length
65 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
8
Peripheral (Molex) power connectors (4-pin)
4
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Yes
ATX power connector (20+4 pin)
Yes
Cabling type
Fully-Modular
Performance
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Purpose
PC/Server
ATX version
2.31
Mean time between failures (MTBF)
100000 h
Certification
CB, CE, RoHS
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Packaging content
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width
150 mm
Depth
160 mm
Height
86 mm
Weight
2.01 kg
Packaging data
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Package depth
112 mm
Package width
299 mm
Package height
249 mm
Package type
Box
Package weight
2.56 kg
Certificates
80 PLUS certification
80 PLUS Gold
Certification
CB, CE, RoHS
Kolink Enclave power supply unit 700 W 20+4 pin ATX ATX Black
