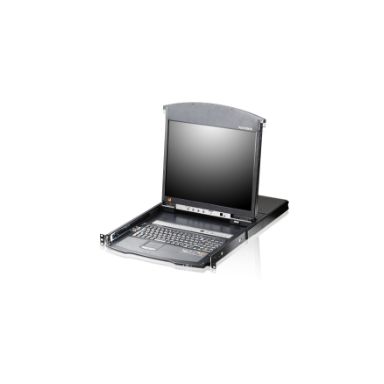

Aten Kl1508ain-Axa-Ee Kvm Switch Rack Mounting
In Stock
|
$2724.98
$3269.98 (Inc. VAT)
Technical details
Product colour
Black
Rack mounting
Yes
Scan interval
1-255 s
Push button
Yes
On Screen Display (OSD)
Yes
LED indicators
Yes
Hot keys
Yes
Video
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Ports & interfaces
Console USB ports quantity
2
Console ports
PS/2- USB A- VGA (D-Sub)
Number of computers controlled
128
Keyboard port type
USB- PS/2
Mouse port type
USB- PS/2
Video port type
VGA
PS/2 ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
10
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
10
Performance
Daisy chain
Yes
Firmware upgradeable
Yes
Auto scan delay (min)
1 s
Auto scan delay (max)
255 s
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Scan interval
1-255 s
Design
Product colour
Black
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Rack capacity
1U
Housing material
Metal
Display
Built-in display
Yes
Display
LCD
On Screen Display (OSD)
Yes
Display diagonal
48.3 cm (19")
Power
Input current
1 A
Power source
DC
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
24.5 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
480 mm
Depth
701.2 mm
Height
44 mm
Weight
15.4 kg
Packaging content
Rack mount kit
Yes
Cables included
AC- KVM
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
Aten Kl1508ain-Axa-Ee Kvm Switch Rack Mounting
